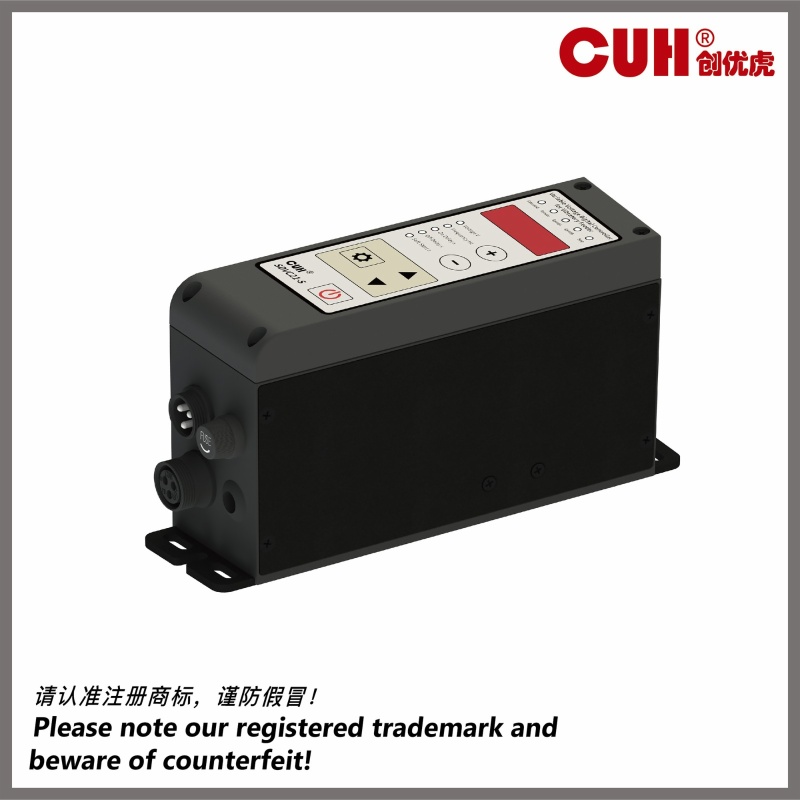

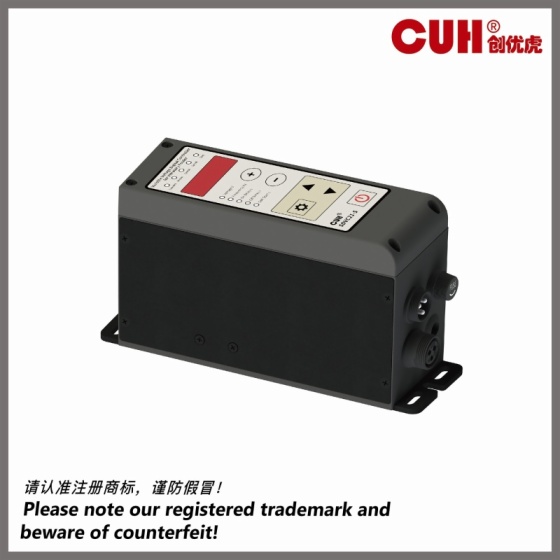

SDVC21 Variable Voltage Vibratory Feeder Controller SDVC21:6A

  • SDVC21 Variable Voltage Vibratory Feeder Controller
  • SDVC21 Variable Voltage Vibratory Feeder Controller
  • SDVC21 Variable Voltage Vibratory Feeder Controller
  • SDVC21 Variable Voltage Vibratory Feeder Controller
Item Code:SDVC21:6A Features:Features:1.Automatic Voltage Regulation: The built-in Digital Voltage Regulation function can eliminate feeding speed variation caused by mains voltage fluctuation. 2.Soft Startup: In order to avoid sudden shock to the work pieces, the controller can gently increase output voltage from 0 to the pre-set value when startup. 3.Soft Startup Time Setting: Soft Startup Time can be set exactly in digital numbers. 4.Halt When Work-pieces Are Full: A NPN sensor can help to stall the controller when work-pieces are full and help to fulfill the functions of Soft Startup Time Setting, Startup Delay, Shutdown Delay, and Logical Relation Adjusting.
  • Description
Features:
1.Automatic Voltage Regulation: The built-in Digital Voltage Regulation function can eliminate feeding speed variation caused by mains voltage fluctuation.
2.Soft Startup: In order to avoid sudden shock to the work pieces,SDVC22-S Variable Voltage Vibratory Feeder Controller can gently increase output voltage from 0 to the pre-set value when startup.
3.Soft Startup Time Setting: Soft Startup Time can be set exactly in digital numbers.
4.Halt When Work-pieces Are Full: A NPN sensor can help to stall the controller when work-pieces are full and help to fulfill the functions of Soft Startup Time Setting, Startup Delay, Shutdown Delay, and Logical Relation Adjusting.
5.Controlling Output: The Controlling Output signal outgoing from the transistor can coordinate a solenoid valve or other external devices with the controller.
6.Overheat Protection: SDVC22-S Variable Voltage Vibratory Feeder Controller will halt its output to protect itself when operating temperature is too high.
7.Current Overload Protection: SDVC22-S Variable Voltage Vibratory Feeder Controller will halt its output to ensure equipment operation safety when operating current exceeds its rated value.
The following functions can be customized:
1.Dual Control Signals Input: Dual control signals input of Work-pieces-Full and Work-piece-Empty could form the logical control relation of AND, OR, NOT, XOR, and all the others.
2.Output Voltage Preset Function: Up to four preset output voltage values can be chosen by external control signals.
3.Intelligent Photoelectric Sensing: Our adaptive Intelligent Photoelectric Sensor can help to stall the controller when work-pieces are full or work-piece is empty and can help to fulfill the functions of Soft Startup Time Setting, Startup Delay, Shutdown Delay, and Logical Relation Adjusting.
4.Remote Speed Control: Output voltage of the controller can be controlled by an external potentiometer, a PLC, or a voltage control signal ranging form 1V to 5V.

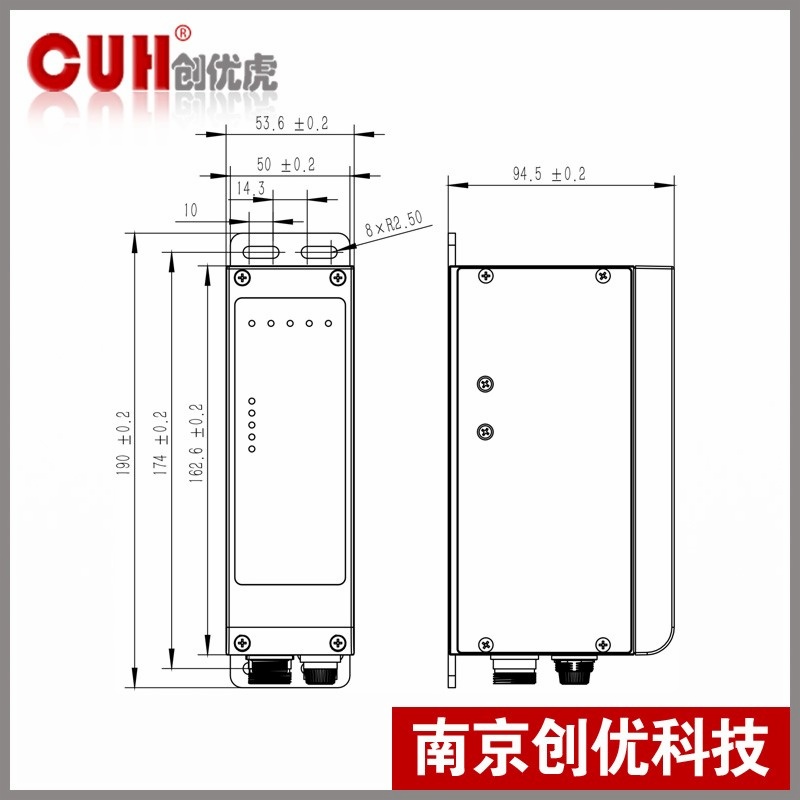

Dimensions:200*55*100(L*W*H, mm)
Weight:The controller weights 550g without accessory

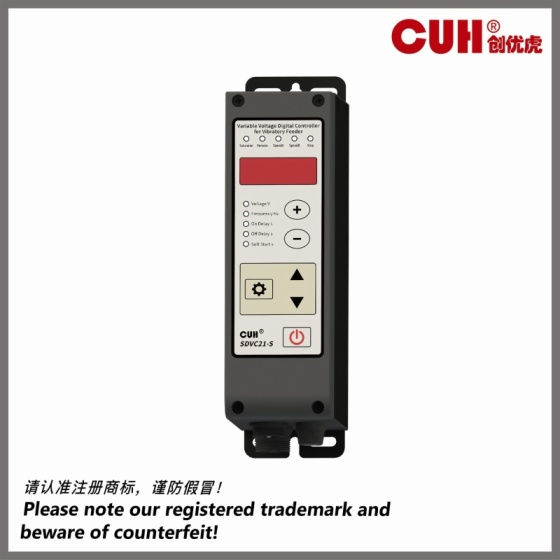

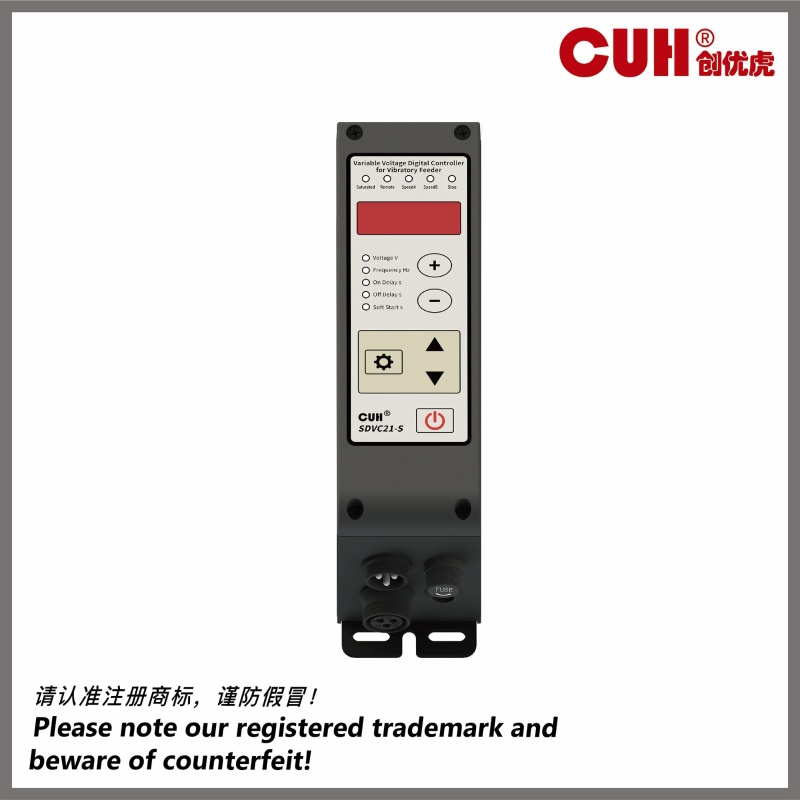

Front View


Bottom View

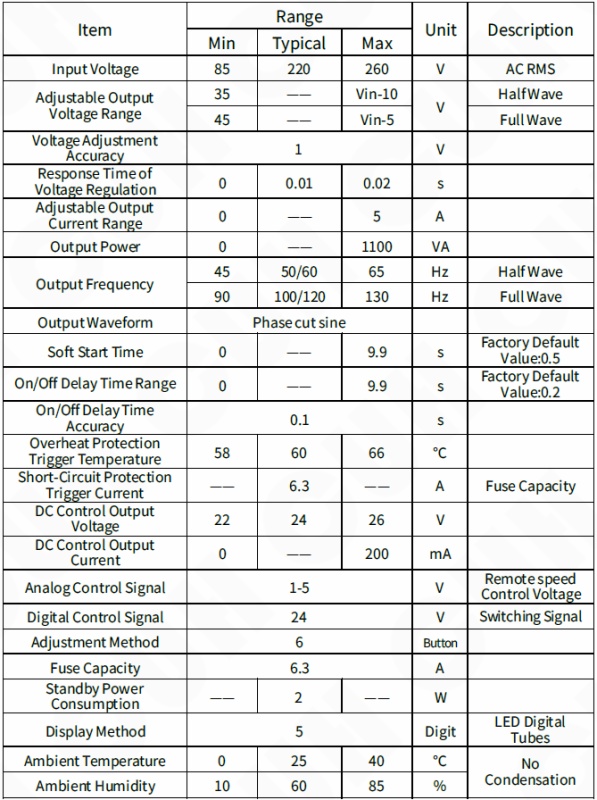

Technical Specifications:

Item

Value

Unit

Description

MIN

MAX

Input Power Voltage

85

260

V

AC RMS Vaule

Output Power Voltage

0

260

V

Less than Input Power Voltage

Output Current

0

6

A

Output Frequency

50/100

Hz

Mains Frequency is 50Hz

60/120

Hz

Mains Frequency is 60Hz

Output Power

0

1320

VA

Output Waveform

Tangent Sine

Voltage Adjusting Accuracy

1

V

Time Delay Range

0

20

s

Time Delay Accuracy

0.1

s

Soft Startup Time

0

10

s

Auxiliary Power Supply Voltage

22

26

V

24V DC Controlling Power Supply

Auxiliary Power Supply Current

0

200

mA

24V DC Controlling Power Supply

Standby Power Consumption

1.5

3

W

Display Method

5

digit

LED Digital Tube

Control Method

1-5

V

Remote Controlled Voltage

Standard TTL

Electric Level

Switching Signal

6 Buttons plus LED

Touch Button Keyboard

Ambient Temperature

-10

45

Non-condensing

Working Environment Humidity

10

85

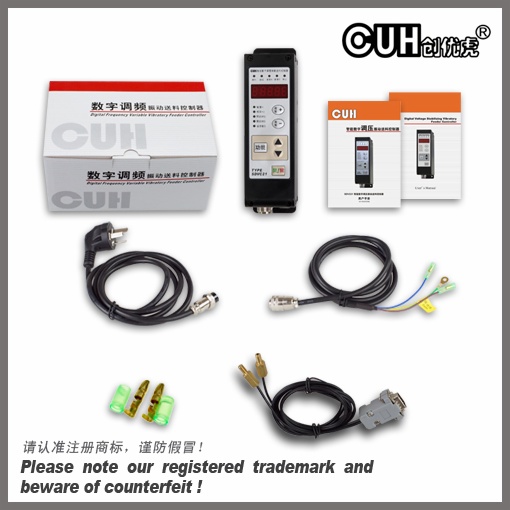

Packing Photo
