SDVC11S(4A) Variable Voltage Controller for Vibratory Feeder

  • SDVC11S(4A) Variable Voltage Controller for Vibratory Feeder
  • SDVC11S(4A) Variable Voltage Controller for Vibratory Feeder
  • SDVC11S(4A) Variable Voltage Controller for Vibratory Feeder
  • SDVC11S(4A) Variable Voltage Controller for Vibratory Feeder
Item Code: Features:Features: 1. Automatic Voltage Regulation: The built-in Digital Voltage Regulation function can eliminate feeding speed variation caused by mains voltage fluctuation. 2. Soft Startup: In order to avoid sudden shock to the work pieces, SDVC11-M Automatic Voltage Regulated Controller for Vibratory Feeder/Parts Feeder can gently increase output voltage from 0 to the pre-set value when startup.
  • Description

Features:
1. Automatic Voltage Regulation: The built-in Digital Voltage Regulation function can eliminate feeding speed variation caused by mains voltage fluctuation.
2. Soft Startup: In order to avoid sudden shock to the work pieces, SDVC11-S Variable Voltage Controller for Vibratory Feeder can gently increase output voltage from 0 to the pre-set value when startup.
3. Linearity Control: With the help of linear voltage regulating function, output voltage of the controller changes linearly as the knob rotates. Thus SDVC11-S Variable Voltage Controller for Vibratory Feeder has excellent practical operability.
4. Short-Circuit Protection: If output of SDVC11-S Variable Voltage Controller for Vibratory Feeder is short-circuited, the controller will halt its output until restarted.
5. Overheat Protection: SDVC11-S Variable Voltage Controller for Vibratory Feeder will halt its output to protect itself when operating temperature is too high.

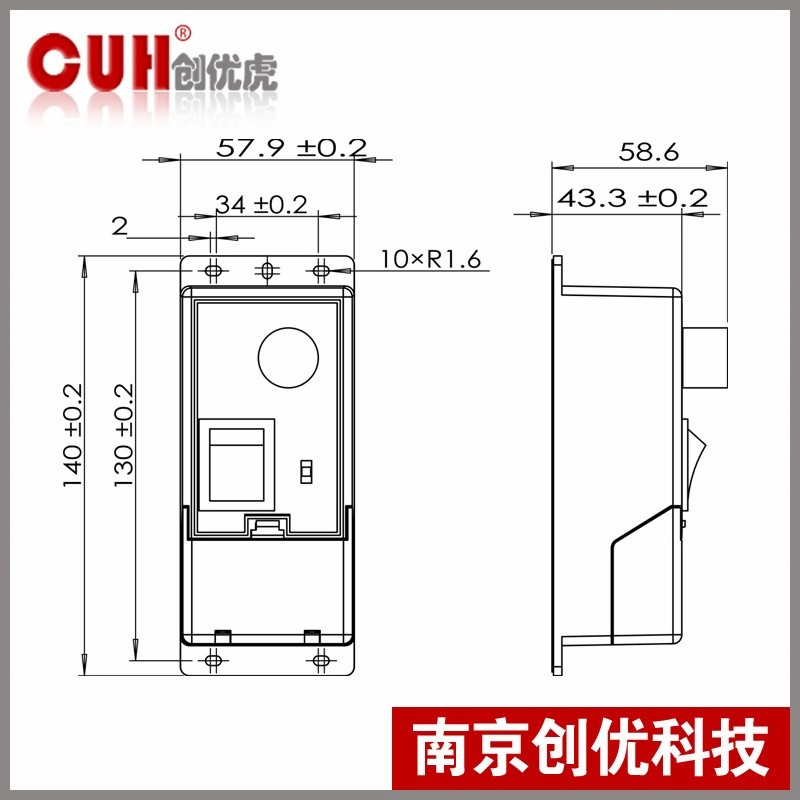

Dimensions: 140*58*60(L*W*H, mm)
Weight: 430g without accessory

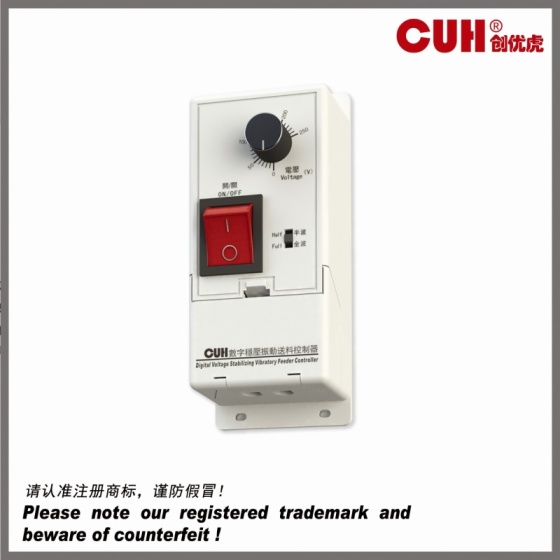

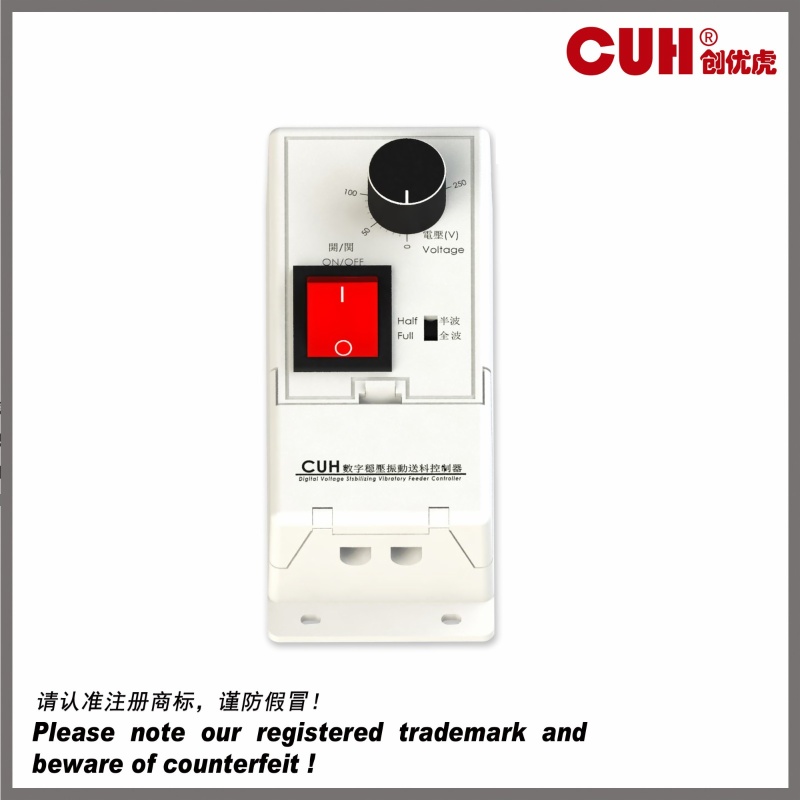

Front View

Bottom View

Signal Interface View

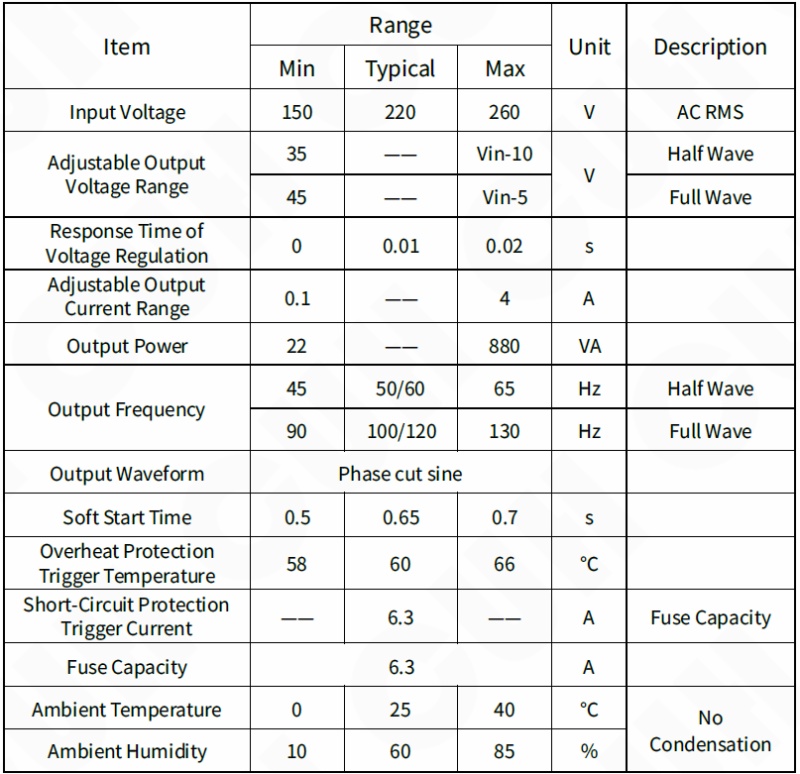

Technical Specifications:





Item

Value

Unit

Description

MIN

MAX

Input Power Voltage

150

260

V

AC RMS Vaule

Output Power Voltage

6

260

V

Less than Input Power Voltage

Output Current

0

4

A



Output Frequency

50/100

Hz

Mains Frequency is 50Hz

60/120

Hz

Mains Frequency is 60Hz

Output Waveform

Tangent Sine



Soft Startup Time

0.2

s



Response Time of Voltage Regulation

0

0.02

s



Voltage Adjusting Accuracy

0

3

V

△Vin=10%

Ambient Temperature

0

40

No condensation

Working Environment Humidity

10

85

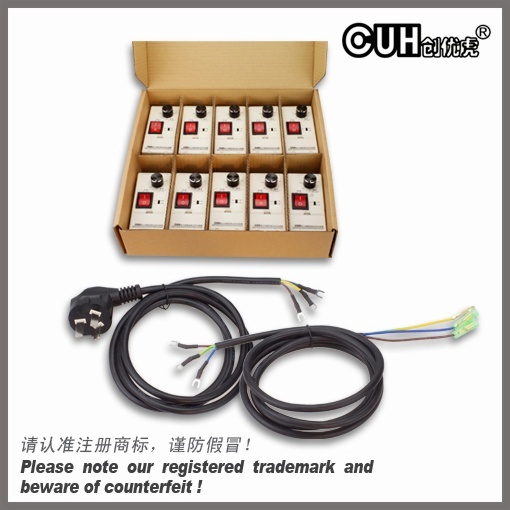

Packing Photo
