Profile information

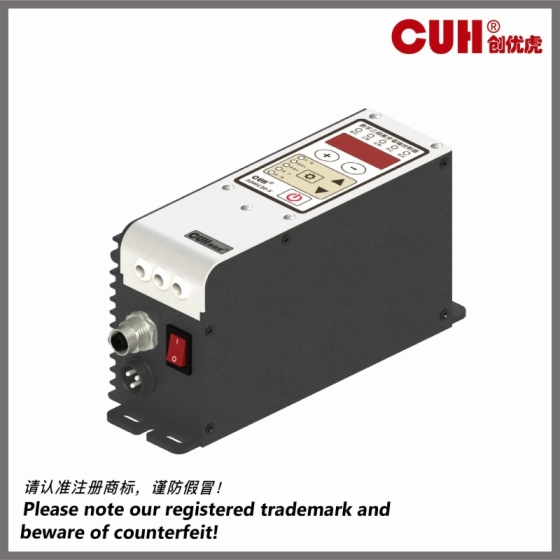

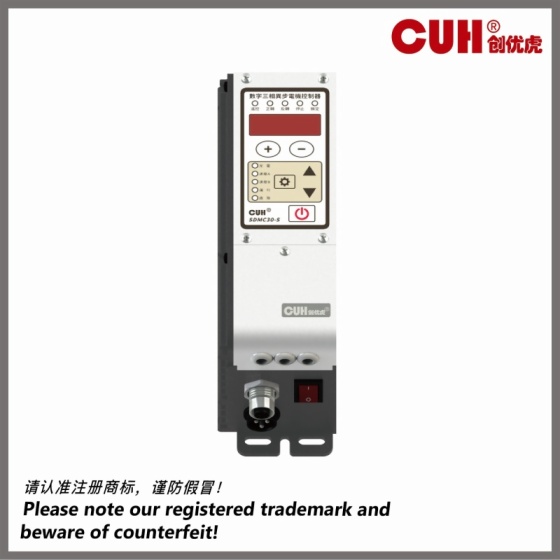

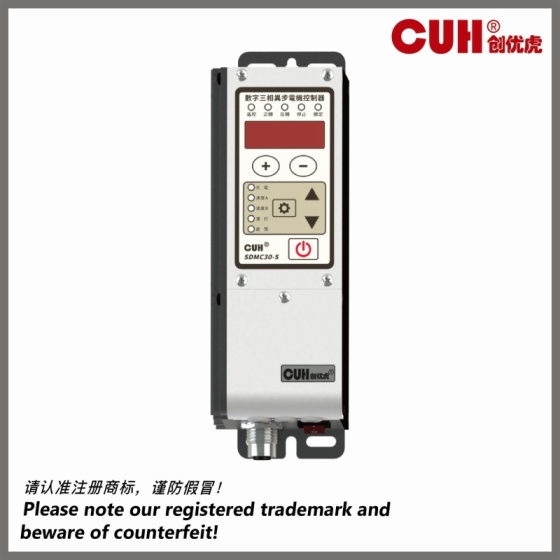

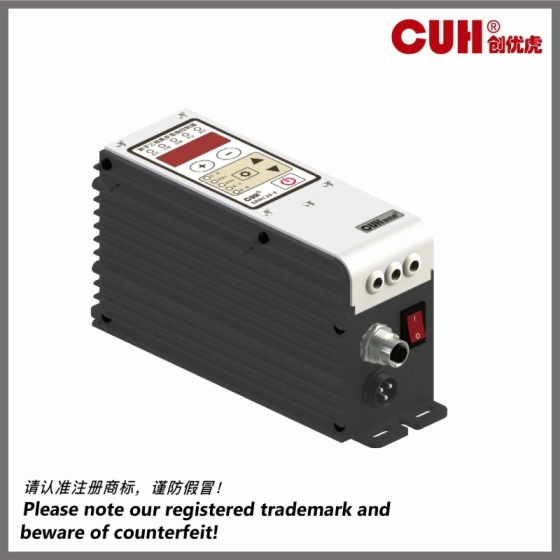

The SDMC30 series digital asynchronous motor controller is a compact, silent, all-solid-state fanless variable frequency controller that offers unique performance using the latest electronic technology and proposed design. It is particularly suitable for industrial environment applications.

Product information

The SDMC30 series digital asynchronous motor controller is a compact, silent, all-solid-state fanless variable frequency controller that offers unique performance using the latest electronic technology and proposed design. It is particularly suitable for industrial environment applications.

◆Bluetooth communication: supports mobile phone Bluetooth connection to the controller.

◆ Frequency Adjustment: The output frequency of the controller can be manually adjusted to the resonant frequency of the vibratory feeder to get a smooth, quiet, and energy-saving feed effect.

◆Soft startup: When starting, the motor speed will gradually increase from zero to the set speed to eliminate the impact on the motor. Users can set the soft startup time according to their needs.

◆Soft shutdown: Added a soft shutdown function, which can be set to 0.0~10.0 seconds to stop the motor rotation slowly.

◆Automatic speed stabilization: built-in digital PID control regulator to eliminate the influence of voltage fluctuation or load change on motor speed.

◆Control output: The port supports NPN, PNP, or push-pull output mode, with over-current and short-circuit protection functions.

◆Switch sensor ports: 2 groups of overflow control ports, support NPN, PNP, or automatic adaptation type.

◆Intelligent photoelectric port: The on/off delay and sensitivity of intelligent photoelectric sensors can be adjusted.

◆Motor stall protection: When the motor stalls, the controller stops output to protect the motor.

◆There are up to three groups of logic signal sources for main output and control output, users can freely combine them according to their needs.

◆Password lock and parameter lock function: After the controller is debugged, the parameters can be locked to prevent personnel misoperation.

◆Various control objects: The parameters of the control objects can be adjusted to realize open-loop or closed-loop control of the motor, and can also control the vibratory feeder.

◆Complete protection functions include: main output overcurrent protection, overheating or overcooling protection, power supply undervoltage/overvoltage protection, control output short circuit protection, 24V output short circuit protection, speed regulation 5V output short circuit protection, and motor stall protection.

◆ Restorable Short Circuit Protection: If the controller's output is short-circuited, the controller will shut down its output to protect itself and the load. But the fuse inside will not be blown. So when there is no short circuit on the output side, the controller will work again after the power is on.

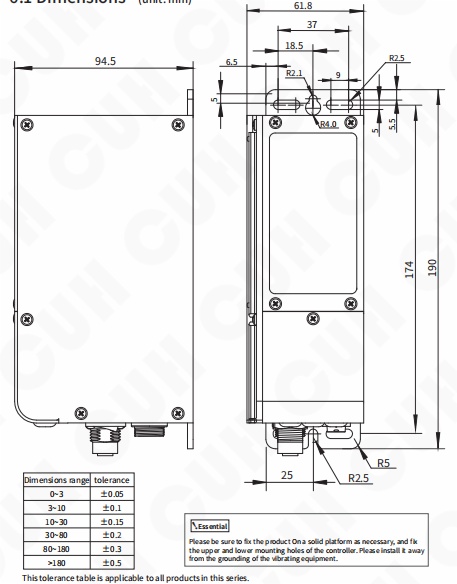

Dimensions&Weight

◆ Dimensions：94.5*61.8*190(L*W*H,mm)

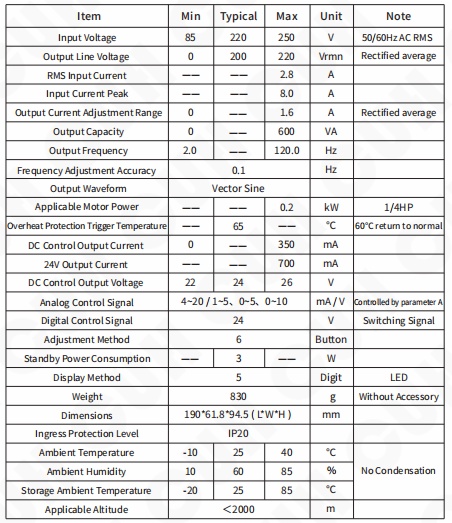

Technical Specifications

Product Specification
