Profile information

Capacitive Load,Output Current Display,Frequency Adjustment,Automatic Resonant Frequency Scan,Dual Switch Sensor ON/OFF Control,DC Control Output,Type of Control Output,Over current Protection,Overheat Protection,Over voltage Protection,Thunder Protection,Restorable Short Circuit Protection.

Product information

Capacitive Load: The controller is specifically designed to drive altrasonic piezoelectric vibrators and can drive capacitive loads.

Output Current Display: Output current can be displayed in real time

Frequency Adjustment: Output frequency of the controller can be manually adjusted to resonant frequency of the pzt to get smooth,quiet and energy-saving Welding effect.

Automatic Resonant Frequency Scan: Scan and then output resonant frequency of the PzT. other related parameters are also set automatically.

Dual Switch Sensor ON/OFF Control: 2 switch sensors or PLCs can be connected to turn on/off the controller.

DC Control Output: The controller can output low voltage DC power associated with ON/OFF Control of the controller to drive a solenoid or other external devices

Type of Control Output: NPN type Automatic Switch Sensor Type Recognition: The

controller can recognize and adapt to both PNP and NPN type switch sensors

Overcurrent Protection: If output current exceeds its rated value, the controller will stop its output to protect itself and the load

Overheat Protection: If internal temperature of the controller gets too high, the controller will stop its output to protect itself

Overvoltage Protection: If input voltage is too high,power supply of the controller will be shutdown automatically to protect itself

Thunder Protection: The controller can withstand lightning strikes not exceeding 2kV.

Restorable Short Circuit Protection: If output of the controller is short-circuited, the controller will shutdown its output to protect itself and the load. But the fuse inside will not be blown So when there is no short circuit at the output side, the controller will work again after power on.

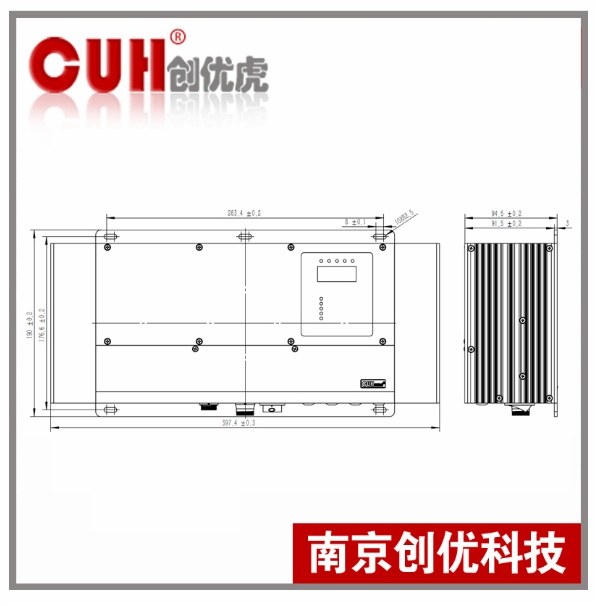

Dimensions&Weight

◆ Dimensions：397.4*190*94.5(L*W*H,mm)

◆ Weight：4865g（without accessory）

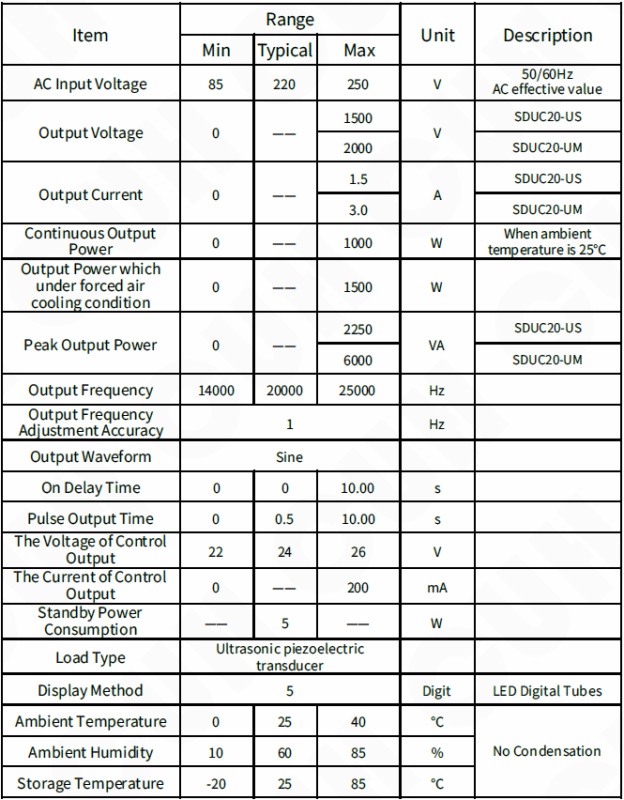

Technical Specifications

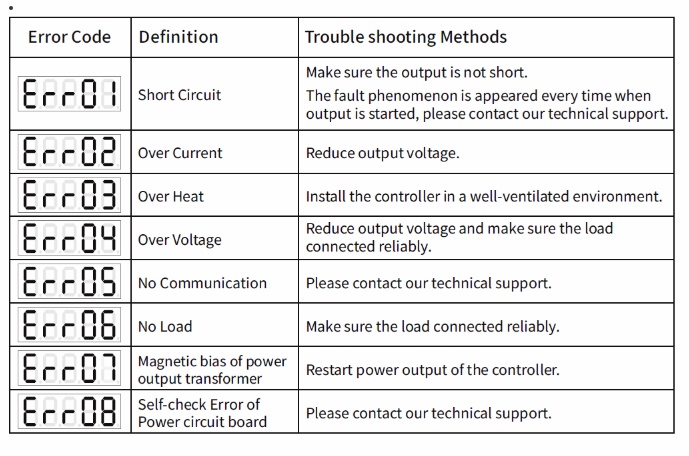

Error message
