Features：

SDVC61 series intelligent low-voltage flexible vibration feeding controller is a product specially designed for the flexible feeding system of voice coil motor. Advanced electronic technology and careful design provide unique performance. It is featured on:

◆ Four voice coil motor drive outputs, the maximum power is 24V/3A, and the phase difference can be controlled independently.

◆ Three light source drive outputs, the maximum power is 60V/2A.

◆ Each light source is equipped with an NTC temperature sensor interface, which can realize overheating protection of the light source.

◆ The controller is designed with 4 programs, and each program includes 9 segments. Each segment can control output enable, output frequency, channel voltage or amplitude, Phase difference, light source current, hold time.

◆ Program selection and running trigger support external switch sensor signal control, and the sensor type can be set or automatically identified.

◆ The flash trigger port is a bidirectional port, which can be set as an input to trigger the lighting of the light source, or as an output to drive an external load. Output support 3 working modes, NPN, PNP, push-pull, support to choose a variety of signal sources.

◆ The flash trigger port can output a synchronous signal or a frequency-shifted signal, which is used to trigger the light source to form a frequency-shifted flash. This function the movement state of the material through the beat frequency, allowing the user to see the details of the material movement.

◆ RS485 interface supports two protocols, Modbus ASCII and RTU, and can control all parameters through networking.

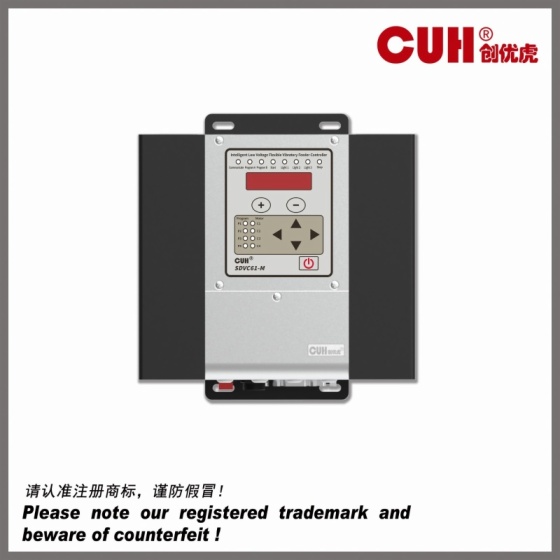

Front View

Bottom View
