SDVC34-XL Series (6A) Smart Autotune Controller for Vibratory Feeder

  • SDVC34-XL Series (6A) Smart Autotune Controller for Vibratory Feeder
  • SDVC34-XL Series (6A) Smart Autotune Controller for Vibratory Feeder
  • SDVC34-XL Series (6A) Smart Autotune Controller for Vibratory Feeder
  • SDVC34-XL Series (6A) Smart Autotune Controller for Vibratory Feeder
Item Code: Features:Model: SDVC34-XL:Autotune Controller (Standard) SDVC34-XLJ:Autotune Controller(Counting) SDVC34-XLR:Autotune Controller(RS485) SDVC34-XLRJ:Autotune Controller(RS485 & Counting) Features: Automatic Constant Feed Speed Control:Automatic output voltage adjustment in real time to ensure constant preset feed speed regardless of weight change of the workpieces. Automatic Frequency Adjustment: Automatic output frequency adjustment in real time to make sure the load is always working at its resonant frequency. Automatic Resonant Frequency Scan: Scan and then output resonant frequency of the load. Other related parameters are also set automatically. Counting: Count number of the workpieces. The controller will slow down or stop when count up to preset value.(available on SDVC34-XLJ & SDVC34-XLRJ) RS485 Communication: All parameters of the controller can be adjusted via RS485.(available on SDVC34-XLR &SDVC34-XLRJ) Dual Switch Sensor ON/OFF Control: 2 switch sensors or PLCs can be connected to turn on/off the controller.(available on SDVC34-XLR and SDVC34-XLJ) Automatic Switch Sensor Type Recognition: The controller can recognize and adapt to both PNP and NPN type switch sensors. Sync Output: Sync output waveform of the slave controller with that of the master controller to the same frequency and phase to avoid beat effect. Remote Speed Control: Output Voltage/Feed Speed of the controller can be adjusted remotely by an external potentiometer, a PLC, a 1-5V or 4-20mA DC signal. Digital Overheat Protection: If internal temperature of the controller gets too high, the controller will stop its output to protect itself. Overcurrent Protection: If output current exceeds its rated value, the controller will stop its output to protect itself and the load. Restorable Short Circuit Protection: If output of the controller is short-circuited,the controller will shut down its output to protect itself and the load. But the fuse inside will not be blown. So when there is no short circuit at the output side,the controller will work again after power on. Dimensions & Weight: Dimensions: 190*147.8*94.5(L*W*H, mm) Weight: 1930g(without accessory) Standard Accessories: Input Power Cable(1.5m) Output Power Cable(1.5m) Vibration Sensor(16g, 2m) Remark:Input power cable can be customized to fit the socket in your country. Optional Accessories: Vibration Sensor(35g, 2m) Vibration Sensor(50g, 2m) Vibration Sensor(70g, 2m)
  • Description

Model:

  • SDVC34-XL:Autotune Controller (Standard)
  • SDVC34-XLJ:Autotune Controller(Counting)
  • SDVC34-XLR:Autotune Controller(RS485)
  • SDVC34-XLRJ:Autotune Controller(RS485 & Counting)



Features

  • Automatic Constant Feed Speed Control:Automatic output voltage adjustment in real time to ensure constant preset feed speed regardless of weight change of the workpieces.
  • Automatic Frequency Adjustment: Automatic output frequency adjustment in real time to make sure the load is always working at its resonant frequency.
  • Automatic Resonant Frequency Scan: Scan and then output resonant frequency of the load. Other related parameters are also set automatically.
  • Counting: Count number of the workpieces. The controller will slow down or stop when count up to preset value.(available on SDVC34-XLJ & SDVC34-XLRJ)
  • RS485 Communication: All parameters of the controller can be adjusted via RS485.(available on SDVC34-XLR &SDVC34-XLRJ)
  • Dual Switch Sensor ON/OFF Control: 2 switch sensors or PLCs can be connected to turn on/off the controller.(available on SDVC34-XLR and SDVC34-XLJ)
  • Automatic Switch Sensor Type Recognition: The controller can recognize and adapt to both PNP and NPN type switch sensors.
  • Sync Output: Sync output waveform of the slave controller with that of the master controller to the same frequency and phase to avoid beat effect.
  • Remote Speed Control: Output Voltage/Feed Speed of the controller can be adjusted remotely by an external potentiometer, a PLC,  a 1-5V or 4-20mA DC signal.
  • Digital Overheat Protection: If internal temperature of the controller gets too high, the controller will stop its output to protect itself.
  • Overcurrent Protection: If output current exceeds its rated value, the controller will stop its output to protect itself and the load.
  • Restorable Short Circuit Protection: If output of the controller is short-circuited,the controller will shut down its output to protect itself and the load. But the fuse inside will not be blown. So when there is no short circuit at the output side,the controller will work again after power on.

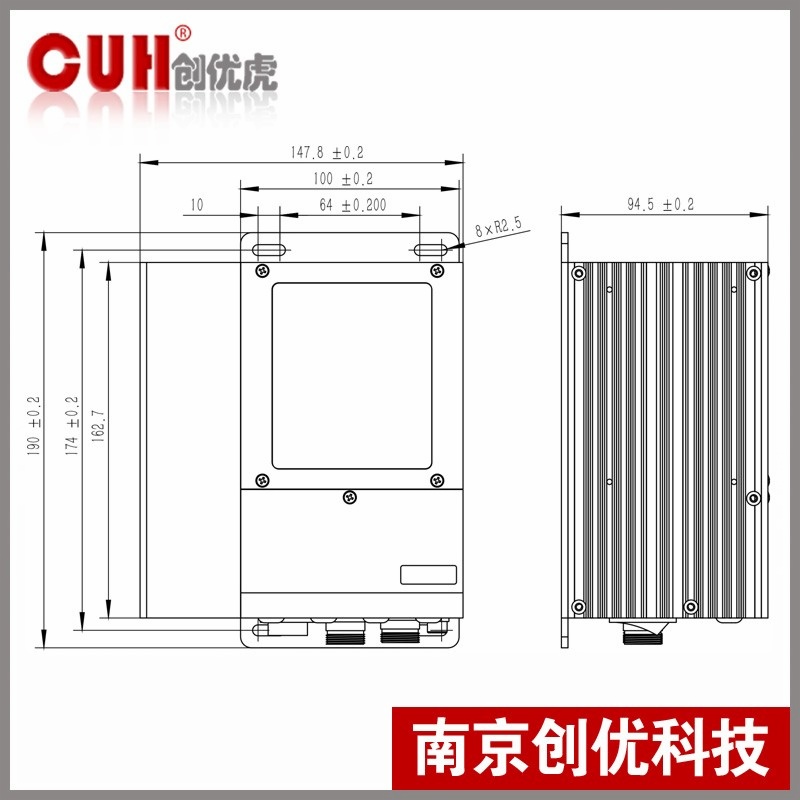

Dimensions & Weight:

  • Dimensions: 190*147.8*94.5(L*W*H, mm)
  • Weight: 1930g(without accessory)



Standard Accessories:

  • Input Power Cable(1.5m)
  • Output Power Cable(1.5m)
  • Vibration Sensor(16g, 2m)
  • Remark:Input power cable can be customized to fit the socket in your country.



Optional Accessories:

  • Vibration Sensor(35g, 2m)
  • Vibration Sensor(50g, 2m)
  • Vibration Sensor(70g, 2m)

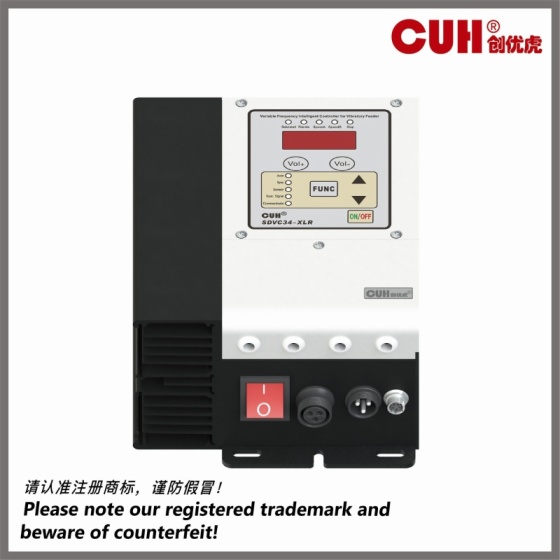

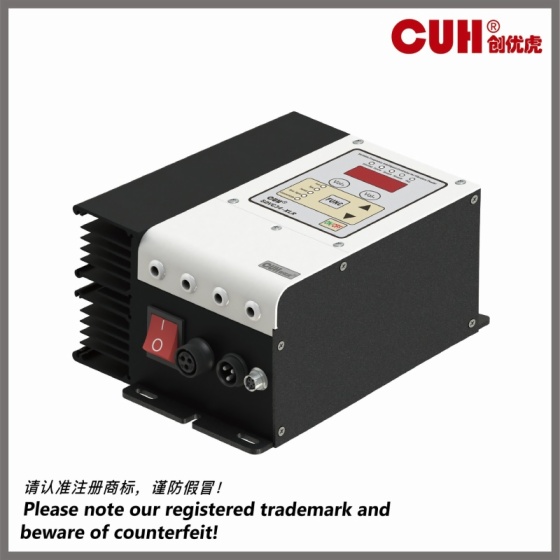

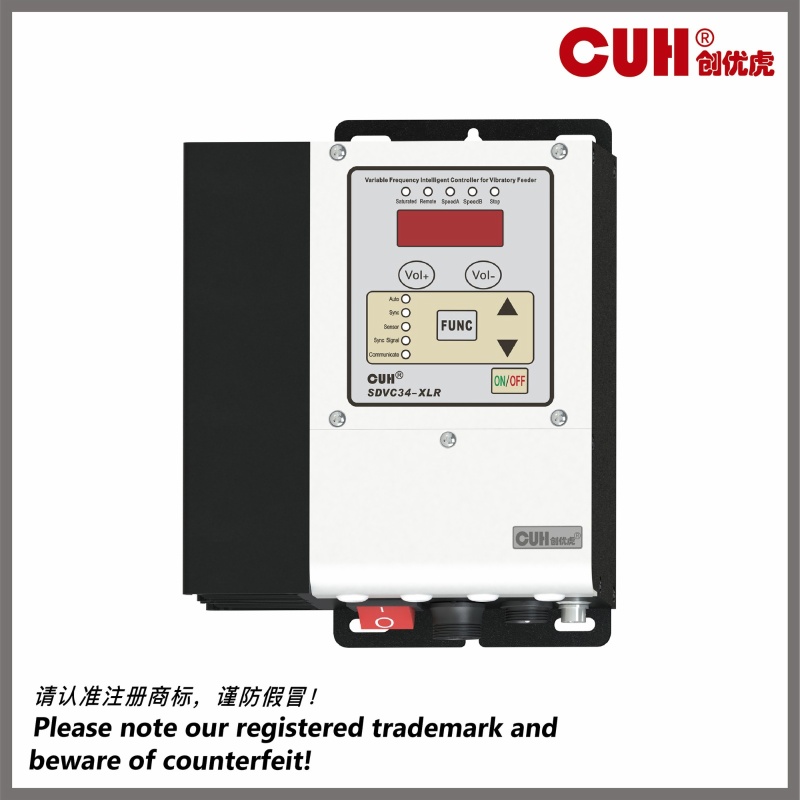

Front View:

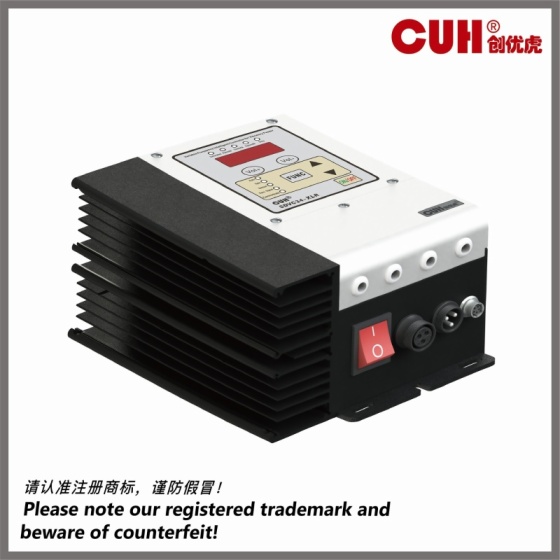

Bottom View:



Signal Interface View:



 Vibration Sensor:

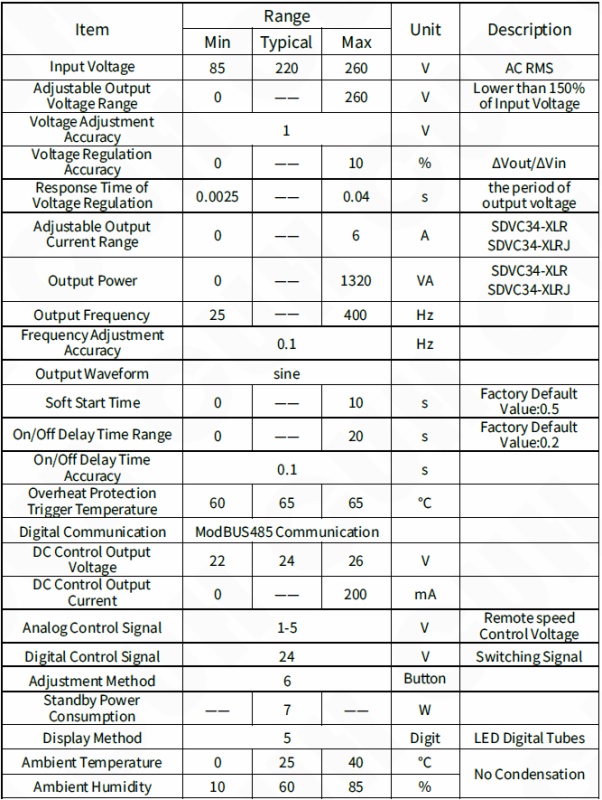

Technical Data:

Item

Range

Unit

Description

Min

Typical

Max

Input Voltage

85

220

260

V

AC RMS

Adjustable Output

Voltage Range

0

——

260

V

Lower than 150% of

Input Voltage

Voltage Adjustment Accuracy

1

V



Voltage Regulation Accuracy

0

——

10

ΔVout/ΔVin

Response Time of

Voltage Regulation

0.0025

——

0.04

s

1/10 of the Period of

Output Voltage

Adjustable Output

Current Range

0

——

6

A



Output Power

0

——

1320

VA



Output Frequency

25

——

400

Hz



Frequency Adjustment Accuracy

0.1

Hz



Output Waveform

sine





Soft Start Time

0

——

10

s

Factory Default Value:0.5

On/Off Delay Time Range

0

——

20

s

Factory Default Value:0.2

On/Off Delay Time Accuracy

0.1

s



Overheat Protection

Trigger Temperature

60

65

65



Digital Communication

ModBUS485 Communication





DC Control Output Voltage

22

24

26

V



DC Control Output Current

0

——

200

mA



Analog Control Signal

1-5

V

Remote Speed

Control Voltage

Digital Control Signal

24

V

Switching Signal

Adjustment Method

6

Button



Standby Power Consumption

——

7

——

W



Display Method

5

Digit

LED Digital Tubes

Ambient Temperature

0

25

40

No Condensation

Ambient Humidity

10

60

85
