Features：
1. Automatic Voltage Regulation: The built-in Digital Voltage Regulation function can eliminate feeding speed variation caused by mains voltage fluctuation.
2. Soft Startup: In order to avoid sudden shock to the work pieces, SDVC11-M Automatic Voltage Regulated Controller for Vibratory Feeder/Parts Feeder can gently increase output voltage from 0 to the pre-set value when startup.
3. Linearity Control: With the help of linear voltage regulating function, output voltage of the controller changes linearly as the knob rotates. Thus SDVC11-M Automatic Voltage Regulated Controller for Vibratory Feeder/Parts Feeder has excellent practical operability.
4. Short-Circuit Protection: If output of SDVC11-M Automatic Voltage Regulated Controller for Vibratory Feeder/Parts Feeder is short-circuited, the controller will halt its output until restarted.
5. Overheat Protection: SDVC11-M Automatic Voltage Regulated Controller for Vibratory Feeder/Parts Feeder will halt its output to protect itself when operating temperature is too high.

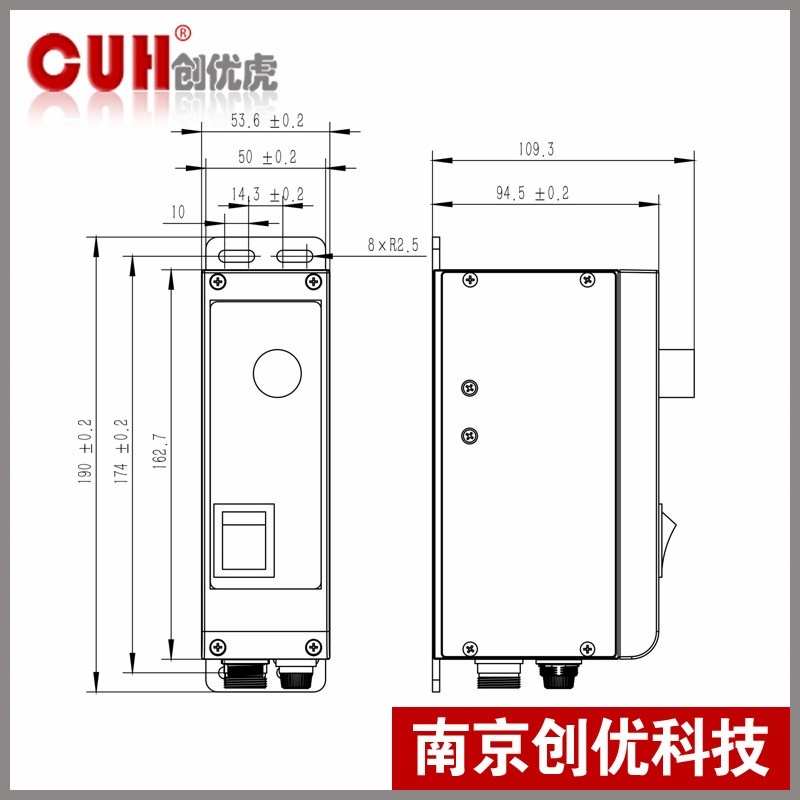

Dimensions: 200*53*118(L*W*H, mm)
Weight: SDVC11-M Automatic Voltage Regulated Controller for Vibratory Feeder/Parts Feeder weights 430g without accessory

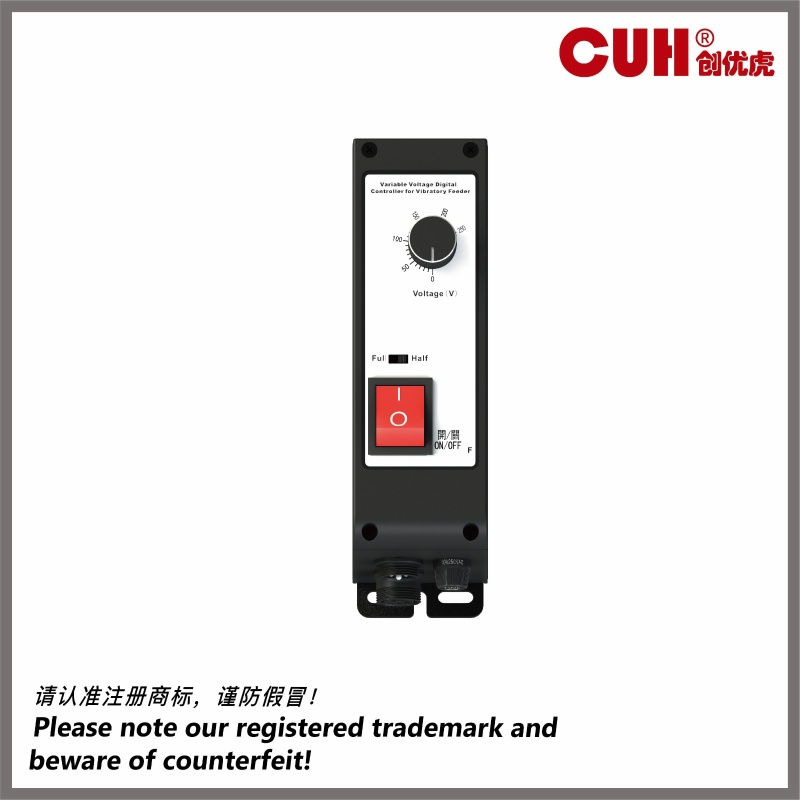

Front View
Bottom View

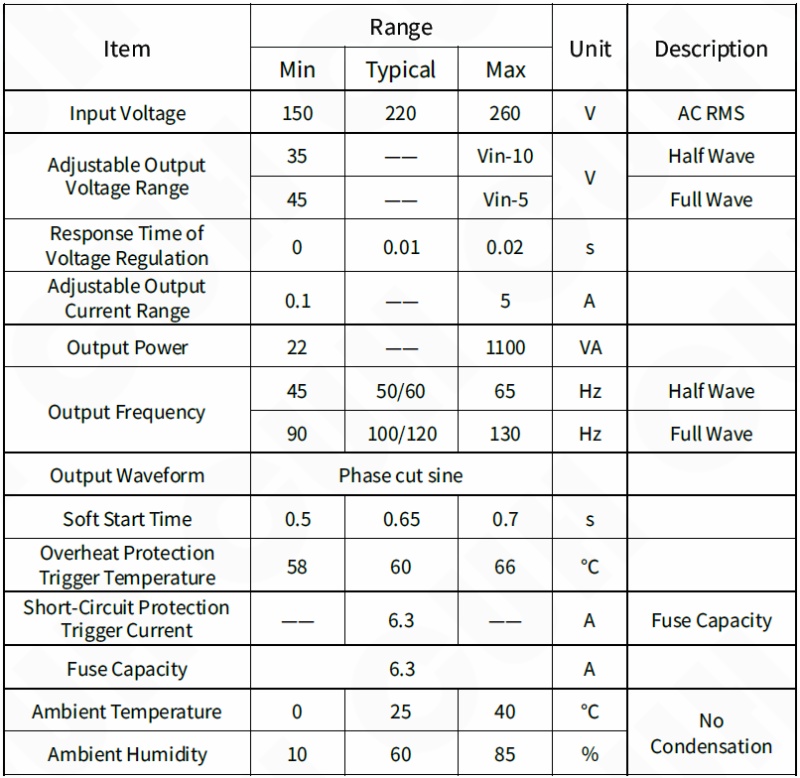

Technical Specifications：
|
Item
|
Value
|
Unit
|
Description
|
|
MIN
|
MAX
|
|
Input Power Voltage
|
150
|
260
|
V
|
AC RMS Vaule
|
|
Output Power Voltage
|
6
|
260
|
V
|
Less than Input Power Voltage
|
|
Output Current
|
0
|
6
|
A
|
|
|
Output Frequency
|
50/100
|
Hz
|
Mains Frequency is 50Hz
|
|
60/120
|
Hz
|
Mains Frequency is 60Hz
|
|
Output Waveform
|
Tangent Sine
|
|
|
|
Soft Startup Time
|
0.2
|
s
|
|
|
Response Time of Voltage Regulation
|
0
|
0.02
|
s
|
|
|
Voltage Adjusting Accuracy
|
0
|
3
|
V
|
△Vin＝10％
|
|
Ambient Temperature
|
0
|
40
|
℃
|
No condensation
|
|
Working Environment Humidity
|
10
|
85
|
％
|

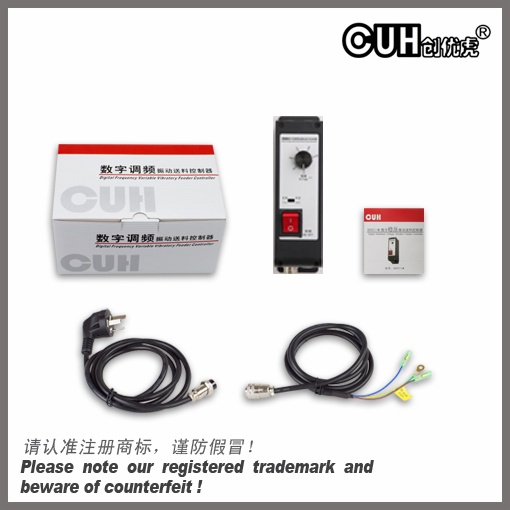

Packing Photo
