Features:
Soft Start: The controller will gently increase output voltage from 0 to the preset value when power on to avoid sudden shake.
Fuse-Short Circuit Protection: If output of the controller is short-circuited the fuse inside will be blown to protect the controller and the load.

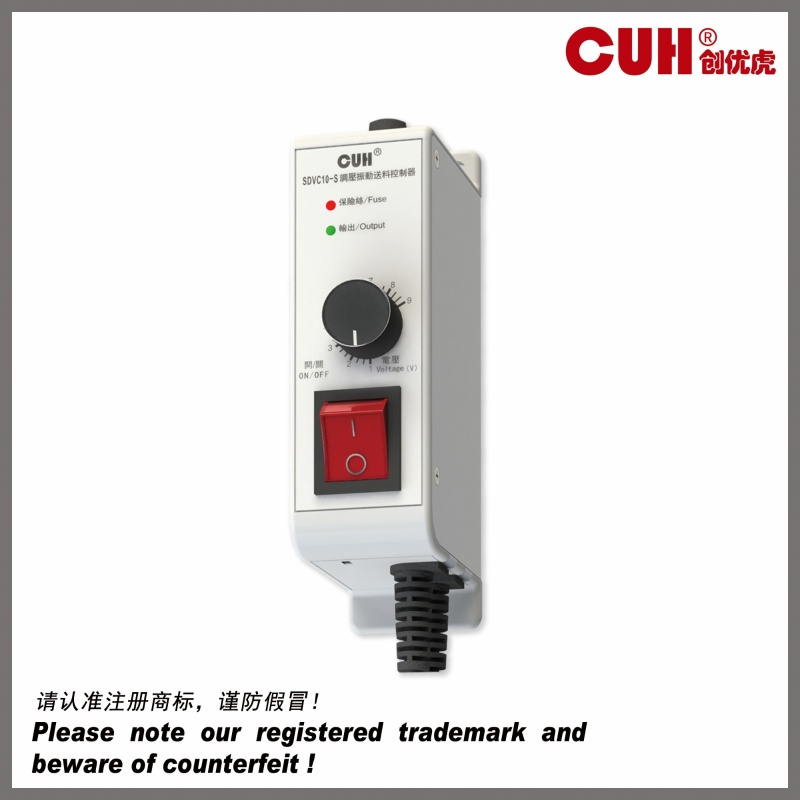

Front View
![](/imglibs/images/5e954950-160f-4f5d-8073-2003cbd5d491-org.jpg)

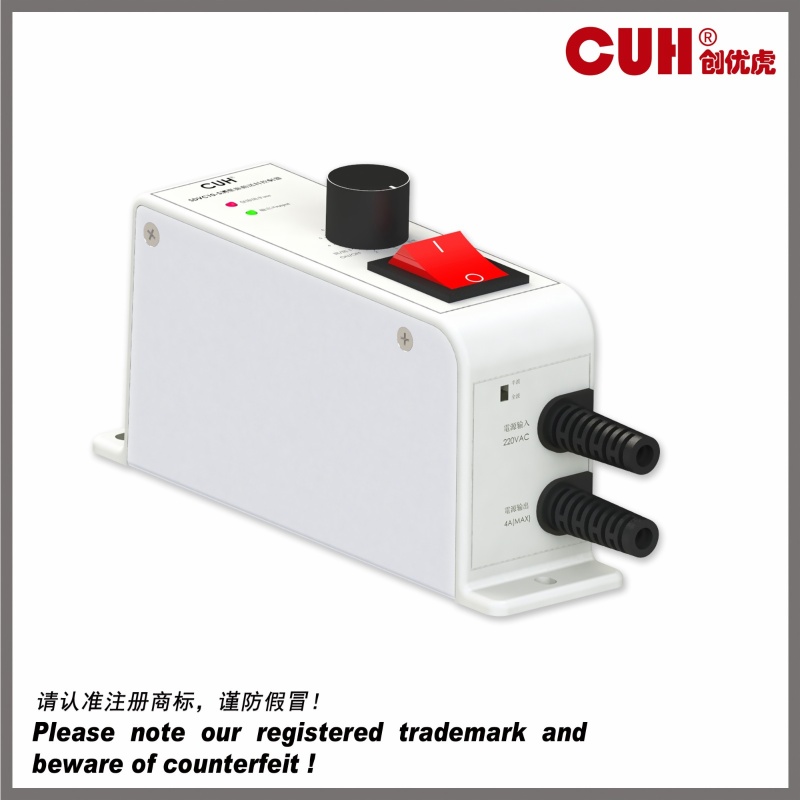

Bottom View
![](/imglibs/images/8b287c6f-ad6c-47e3-92aa-03ed0eb985ab-org.jpg)

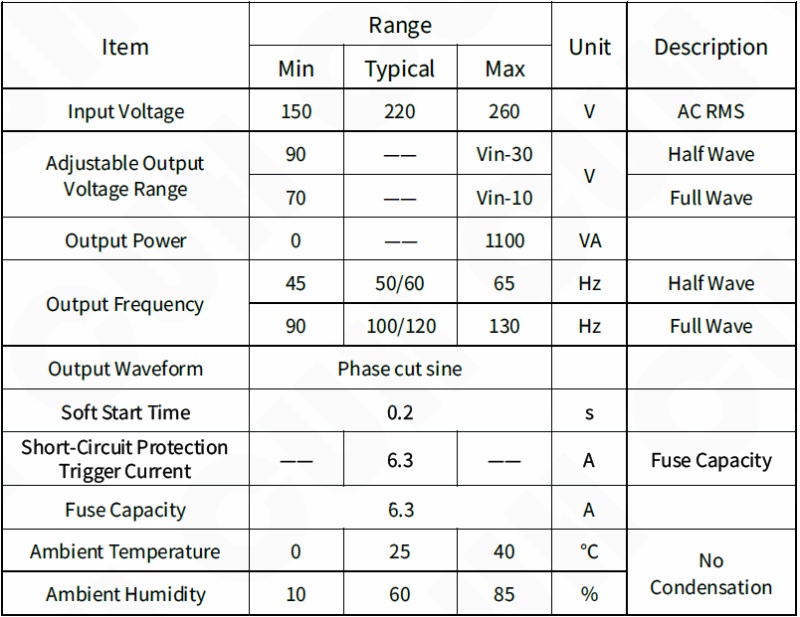

Technical Specifications:
![](/imglibs/images/3c8700e9-0d7e-4f7d-a440-59627f7a6e6d-org.jpg)

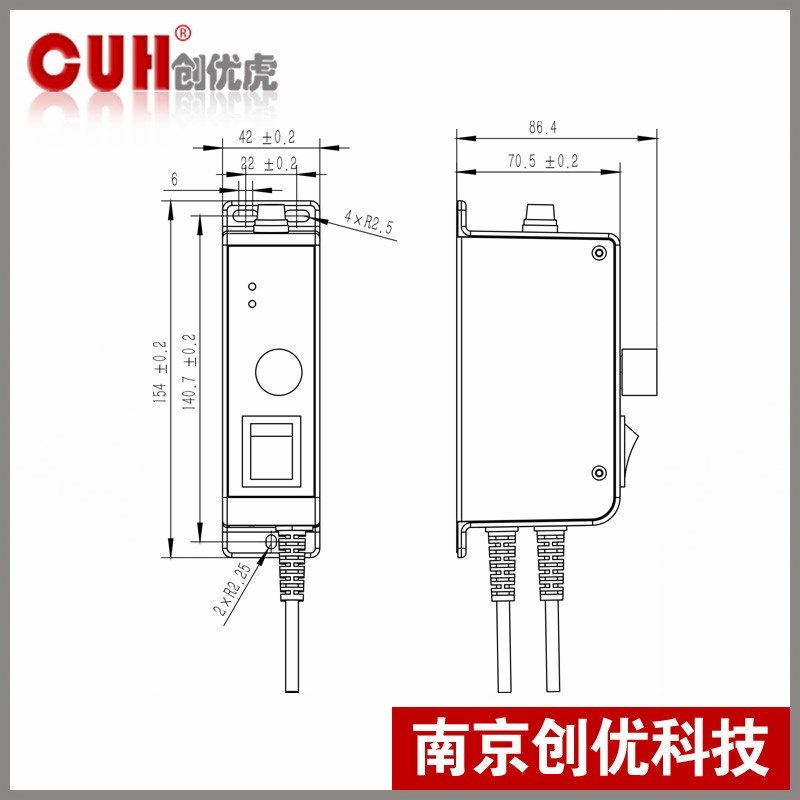

Dimensions&Weight
◆ Dimensions:154*42*86.4(L*W*H,mm)
◆ Weight:370g(without accessory)
![](/imglibs/images/7d4ddf10-a9fa-4ef6-b766-b7d9a9d95a95-org.jpg)
Product Specification
SDVC11-S Variable Voltage Digital Controller for Vibratory Feeder technical manual Catalogue
