Features：
1. Automatic Voltage Regulation: The built-in Digital Voltage Regulation function can eliminate feeding speed variation caused by mains voltage fluctuation.
2. Soft Startup: In order to avoid sudden shock to the work pieces, SDVC20-S Variable Voltage Vibratory Feeder Controller can gently increase output voltage from 0 to the pre-set value when startup.
3.Soft Startup Time Setting：Soft Startup Time can be set exactly in digital numbers.
4. Dual Control Signals Input: Dual control signals input of Work-pieces-Full and Work-piece-Empty could form the logical control relation of AND, OR, NOT, XOR, and all the others.
5. Output Voltage Preset Function: Up to four preset output voltage values can be chosen by external control signals.
6. Halt When Work-pieces Are Full: A NPN sensor can help to stall the controller when work-pieces are full and help to fulfill the functions of Soft Startup Time Setting, Startup Delay, Shutdown Delay, and Logical Relation Adjusting.
7.Intelligent Photoelectric Sensing: Our adaptive Intelligent Photoelectric Sensor can help to stall the controller when work-pieces are full or work-piece is empty and can help to fulfill the functions of Soft Startup Time Setting, Startup Delay, Shutdown Delay, and Logical Relation Adjusting.
8. Remote Speed Control: Output voltage of the controller can be controlled by an external potentiometer, a PLC, or a voltage control signal ranging form 1V to 5V.
9. Controlling Output: The Controlling Output signal outgoing from the transistor can coordinate a solenoid valve or other external devices with the controller.
10.Overheat Protection: SDVC20-S Variable Voltage Vibratory Feeder Controller will halt its output to protect itself when operating temperature is too high.
11.Current Overload Protection: SDVC20-S Variable Voltage Vibratory Feeder Controller will halt its output to ensure equipment operation safety when operating current exceeds its rated value.

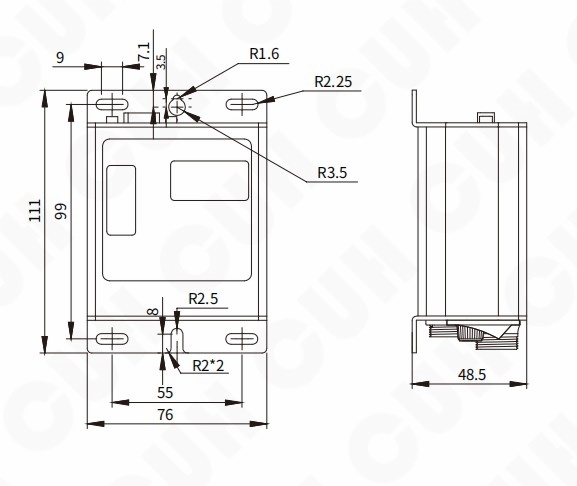

Dimensions:111*76*48.5(L*W*H, mm)

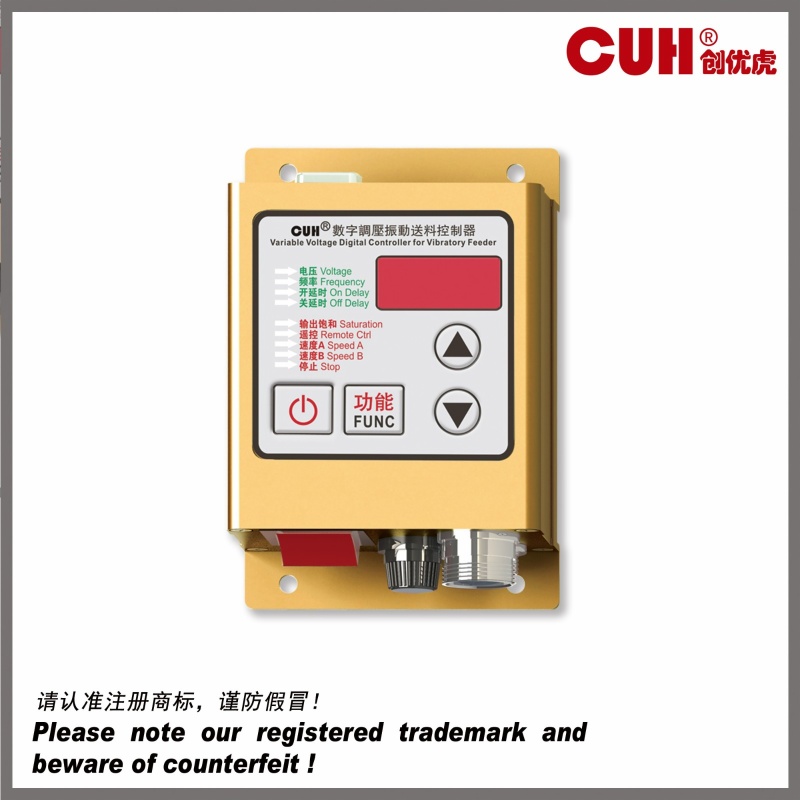

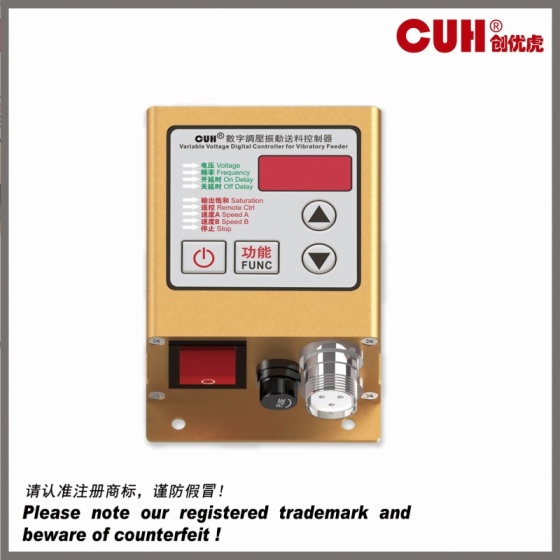

Front View
Bottom View
Signal Interface View
Weight:The controller weights 285g without accessory
|

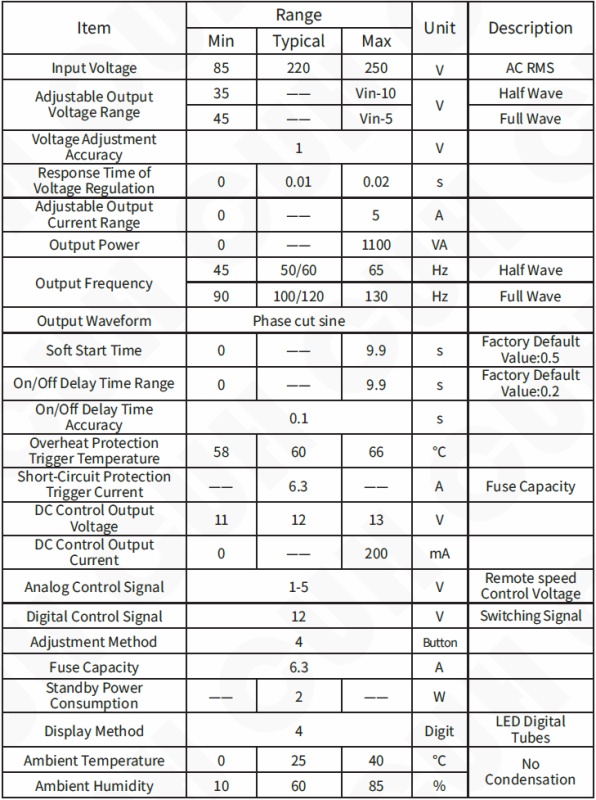

Item
|
Value
|
Unit
|
Description
|
|
MIN
|
MAX
|
|
Input Power Voltage
|
85
|
260
|
V
|
AC RMS Vaule
|
|
Output Power Voltage
|
0
|
260
|
V
|
Less than Input Power Voltage
|
|
Output Current
|
0
|
5
|
A
|
|
|
Output Frequency
|
50/100
|
Hz
|
Mains Frequency is 50Hz
|
|
60/120
|
Hz
|
Mains Frequency is 60Hz
|
|
Output Power
|
0
|
1100
|
VA
|
|
|
Output Waveform
|
Tangent Sine
|
|
|
|
Voltage Adjusting Accuracy
|
1
|
V
|
|
|
Time Delay Range
|
0
|
20
|
s
|
|
|
Time Delay Accuracy
|
0.1
|
s
|
|
|
Soft Startup Time
|
0
|
10
|
s
|
|
|
Auxiliary Power Supply Voltage
|
11
|
13
|
V
|
12V DC Controlling Power Supply
|
|
Auxiliary Power Supply Current
|
0
|
200
|
mA
|
12V DC Controlling Power Supply
|
|
Standby Power Consumption
|
1.5
|
3
|
W
|
|
|
Display Method
|
4
|
digit
|
LED Digital Tube
|
|
Control Method
|
1-5
|
V
|
Remote Controlled Voltage
|
|
Standard TTL
Electric Level
|
|
Switching Signal
|
|
4 Buttons plus LED
|
|
Touch Button Keyboard
|
|
Ambient Temperature
|
-10
|
45
|
℃
|
Non-condensing
|
|
Working Environment Humidity
|
10
|
85
|
％
|
Packing Photo
