Item Code:SDVC21-XLP:25A Features:
  • Description

Features:

IP Grade: IP67. The controller keeps running well in humid, oily and dusty environment.

Super Wide Input Operation Voltage: Input voltage value to the controller could range from 85 to 400 AC.

Automatic Voltage Regulation: The internal digital voltage regulation circuit can reduce feed speed variation caused by mains voltage fluctuation.

Time Adjustable Soft Start: The controller will gently increase output voltage from 0 to the preset value when power on to avoid sudden shake. Soft start time can be digitally preset.

Preset Speeds: 4 feed speeds can be preset, stored and outputted by connecting external short-circuit signals.

Dual Switch Sensor ON/OFF Control: 2 NPN switch sensors or PLcs can be connected to turn on /off the controller.

Photoelectric Sensor ON/OFF Control: The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.

Remote Speed Control: Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1-5V DCsignaL.

DC Control Output: The controller can output low voltage DC power associated with ON/OFF Control of the controller to drive a solenoid or other external devices

Lightnerng Protection: The controller can withstand lightning stroke below 4KV

Overheat Protection: If internal temperature of the controller gets too high, the controller will stop its output to protect itself.

Overcurrent Protection: If output current exceeds its rated value, the controller will stop its output to protect itself and the load.

Fuse-Short Circuit Protection: If output of the controller is short-circuited, the fuse inside will be blown to protect the controller and the load.

Max Adjustable Output Voltage: Max Adjustable Output Voltage can be preset to protect the load from damage caused by too high voltage.

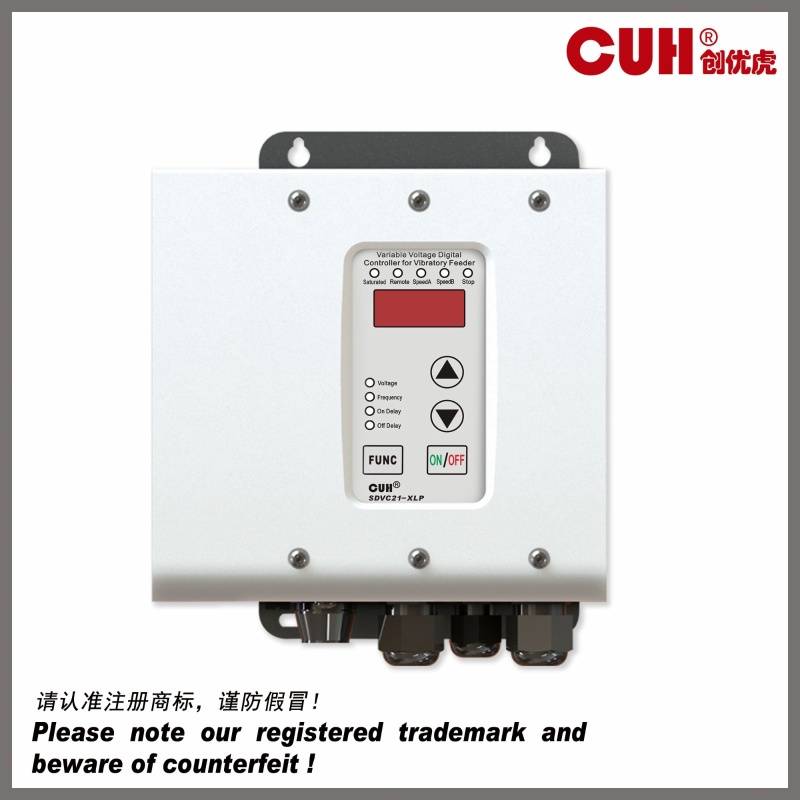

Front View

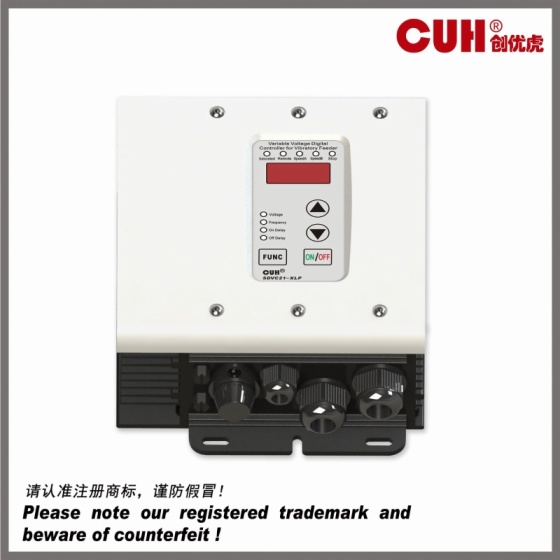

Bottom View

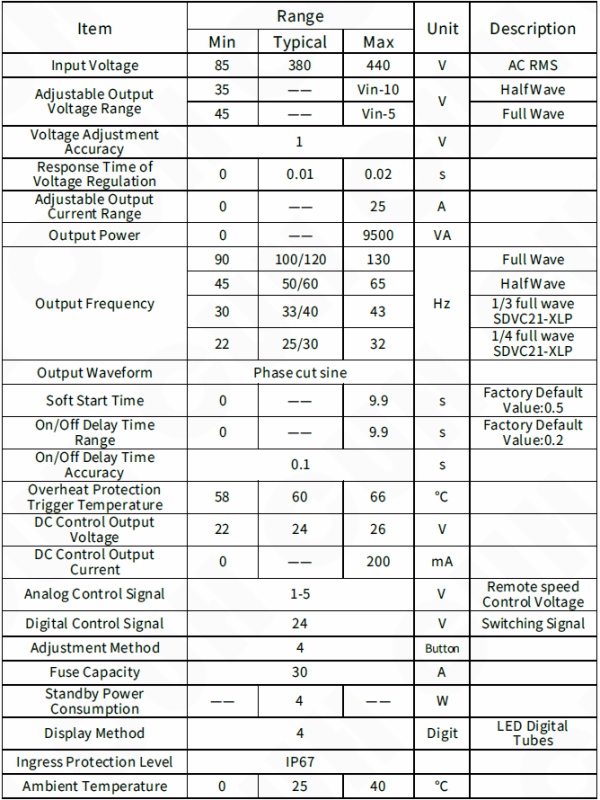

Technical Specifications:



Dimensions&Weight

◆ Dimensions:190*170*98(L*W*H,mm)
◆ Weight:5800g(without accessory)



Product Specification

SDVC21P Variable Voltage Digital Controller for Vibratory Feeder technical manual Catalogue
