Features：
Frequency Tracking: Synchronize output frequency and phase of several controllers to avoid beat effect.
Auto FM: Automatic frequency adjusting in real time to ensure best feeding result.
Auto Speed Stabilization: Automatic feeding speed stabilizing in real time regardless of the quantities of the feeding parts.
Auto Frequency Searching: Find the best operating frequency of the vibratory feeder and adjusts parameters automatically.
Frequency Adjusting: Output Frequency ranges from 40.0Hz to 400.0Hz.
Voltage Adjusting: Output Voltage ranges from 0V to 260V.
Automatic Voltage Stabilizing: The controller can eliminate feeding speed variation caused by mains voltage fluctuation.
Soft Startup: In order to avoid sudden shock to the work pieces, the controller can gently increase output voltage from 0 to the pre-set value when startup.
Intelligent Photoelectric Sensing: Our adaptive Intelligent Photoelectric Sensor can help to stall the controller when work-pieces are full or work-piece is empty and to fulfill the functions of Soft Startup Time Setting,Startup Delay, Shutdown Delay, and Logical Relation Adjusting.
Halt when Work-pieces are full: A NPN switch sensor can help to halt the controller when work-pieces are full and to fulfill the functions of Soft Startup Time Setting, Startup Delay, Shutdown Delay, and Logical Relation Adjusting.
Acceleration: Due to this function, maximum output voltage value of the controller can be increased up to 150% of the input voltage value.
Remote Speed Control: Output Voltage of the controller can be controlled by an external potentiometer, a PLC, or voltage control signal ranging form 1V to 5V.
Controlling Output: The Controlling Output signal outgoing from the transistor can coordinate a solenoid or other external devices with the controller.
Keypad Locking: Press the ON/OFF button and hold for 2 seconds to lock all buttons for fear of false operation.
Maximum Output Restriction: Maximum Output Voltage value can be preset to protect the equipment from damage caused by misuse.
Waveform Index Setting: Operators can weight efficiency and maximum capacity by adjusting this parameter.
Default Settings Restonation: This function allows the user to restore all default
parameter settings and reset the controller.

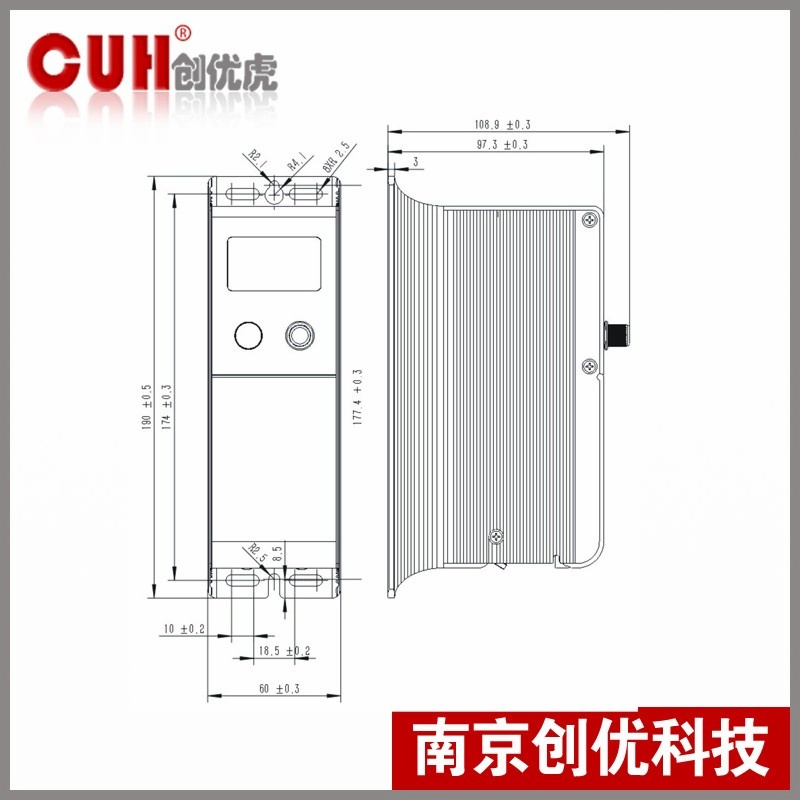

Dimensions:190*53.6*94.5(L*W*H, mm)
Weight:
SDVC35-S:The controller weights 560g without accessory
SDVC35-M:The controller weights 610g without accessory

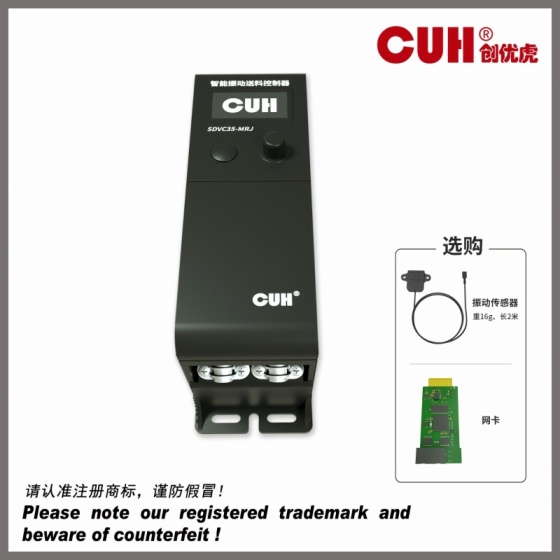

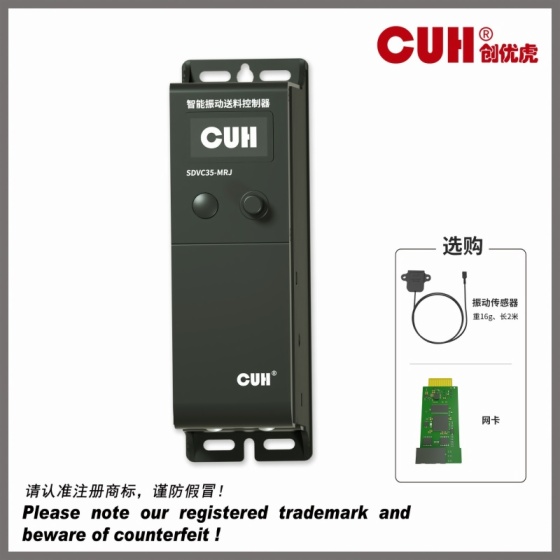

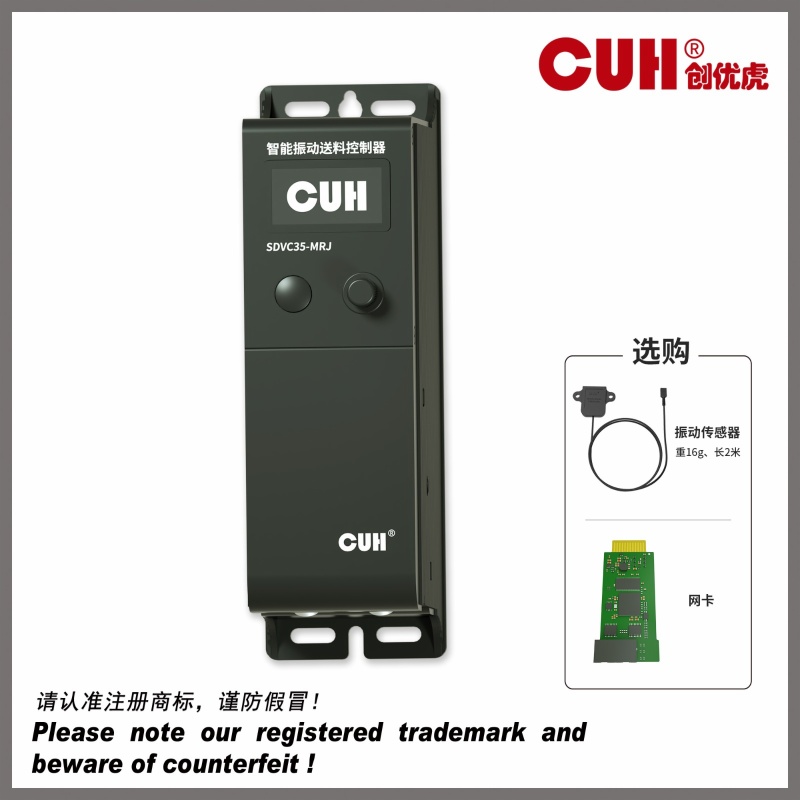

Front View
Bottom View
Signal Interface View
vibration sensor

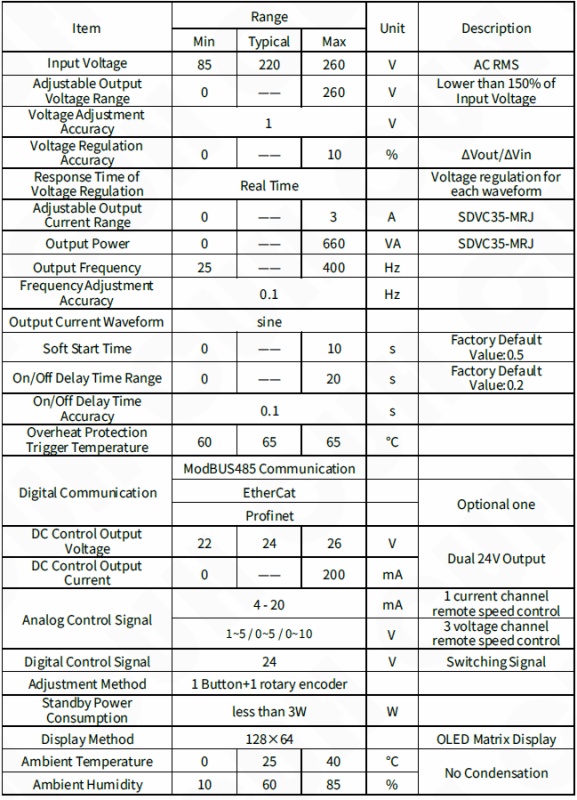

Technical Specifications：
|
Item
|
Value
|
Unit
|
Description
|
|
MIN
|
MAX
|
|
Input Power Voltage
|
85
|
260
|
V
|
AC RMS Vaule
|
|
Output Power Voltage
|
0
|
260
|
V
|
Less than 150% of Input Power Voltage
|
|
Output Current
|
0
|
1.5
|
A
|
SDVC31-S
|
|
0
|
3
|
SDVC31-M
|
|
Frequency Range
|
40
|
400
|
Hz
|
|
|
Output Power
|
0
|
330
|
VA
|
SDVC31-S
|
|
0
|
660
|
SDVC31-M
|
|
Output Waveform
|
Sine
|
|
|
|
Voltage Adjusting Accuracy
|
1
|
V
|
|
|
Frequency Adjusting Accuracy
|
0.1
|
Hz
|
|
|
Time Delay Range
|
0
|
20
|
s
|
|
|
Time Delay Accuracy
|
0.1
|
s
|
|
|
Soft Startup Time
|
0
|
10
|
s
|
|
|
Auxiliary Power Supply Voltage
|
22
|
26
|
V
|
24V DC Controlling Power Supply
|
|
Auxiliary Power Supply Current
|
0
|
200
|
mA
|
24V DC Controlling Power Supply
|
|
Standby Power Consumption
|
1.5
|
3
|
W
|
|
|
Display Method
|
5
|
digit
|
LED Digital Tube
|
|
Control Method
|
1-5
|
V
|
Remote Controlled Voltage
|
|
Standard TTL
Electric Level
|
|
Switching Signal
|
|
6 Buttons plus LED
|
|
Touch Button Keyboard
|
|
Ambient Temperature
|
-10
|
35
|
℃
|
Non-condensing
|
|
Working Environment Humidity
|
10
|
85
|
％
|
