Profile information
Automatic Constant Feed Speed Control,Automatic Frequency Adjustment,Automatic Resonant Frequency Search,Counting,Rs485 Communication,Automatic Switch Sensor Type Recognition,Sync Output,Over voltage Protection,Digital Overheat Protection,Over current Protection,Restorable Short Circuit Protection. Users can follow the following expansion and addition steps to add a new controller to the existing network. The new controller after joining can call the signal of any controller in the network and act controller signal source as any other controller in the network. Enrich system signal sources.
Product information
Automatic Constant Feed Speed Control: Automatic output voltage adjustment in real-time to ensure constant preset feed speed regardless weight change of the work pieces.
Automatic Resonant Frequency Search: Search out and output theresonant frequency of the load. other related parameters are also set automatically
Rs485 Communication: All parameters of the controller can be adjusted via R485
Sync Output: Sync the output waveform of the slave controller with that of the master controller to the same frequency and phase to avoid beat effect
Digital Overheat Protection: If the internal temperature of the controller gets too high, the controller will stop its output to protect itself
Over current Protection: If output current exceeds its rated value the controller will stop its output to protect itself and the load.
Restorable Short Circuit Protection: If the controller's output is short-circuited, it will shut down its production to protect itself and. But the fuse inside will not be blown. So when there is no short circuit at the output side, the controller will work again after power is on.
Dimensions&Weight
◆ Dimensions
190*56*94.5(L*W*H, mm)Weight:560g (without access）
◆ Weight：780 g（without accessory）

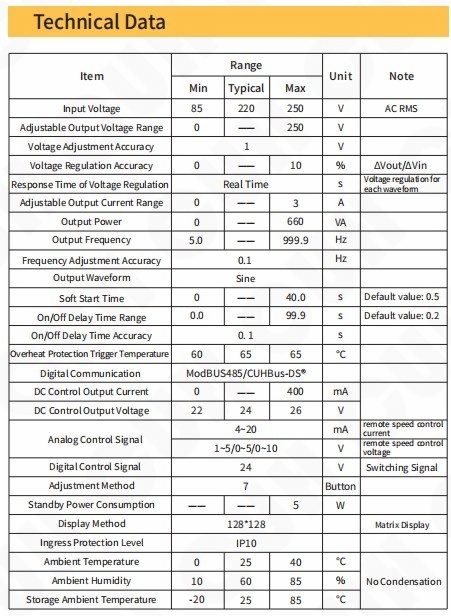

Technical Specifications
Product Specification
Product Catalogue
