SDVC40-XS2 Multi-channel Digital Variable Frequency Piezoelectric Vibration Feeding Controller SDVC40-XS2:50mA*2

Enlarge

Item Code:SDVC40-XS2:50mA*2 Features:

Description

Features：

Capacitive Load: The controller is adaptive to resistive load, inductive load and specially capacitive load such as a piezo vibrator.

Phase Control: when the controler's each channel outputs the same frequence, the phase between each channel can be controlled.

Frequency Adjustment: Output frequency of the controller can be manually adjusted to resonant frequency of the vibratory feeder to get smooth, quiet and energy-saving feed effect Automatic High Precision Voltage Regulation. The internal digital voltage regulation circuit can eliminate feed speed variation caused by mains voltage fluctuation

Switch Sensor ON/OFF Control: One NPN/PNP switch sensor or PLC can be connected to turn on/off the controller.

Remote Speed Control: Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PlC, or a 1-5V DC signal.

DC Control Output: The controller can output low voltage DC power associated with ON/OFF Control of the controller to drive a solenoid or other external devices.

Type of Control Output: NPN type,PNP type,Push-Pull Overvoltage Protection If input voltage is too high, power Supply and screen display of the controller will be turned off automatically to protect itself.

Digital Overheat Protection: If internal temperature of the controller gets too high, the controller will stop its output to protect itself.

vercurrent Protection: If output currentexceeds its rated value, the controller will stop its output to protect itself and the load.

Restorable Short Circuit Protection: If output of the controller is short-circuited the controller will shut down its output to protect itself and the load But the fuse inside will not be blown So when there is no short circuit at the output side, the controller will work again after power on.

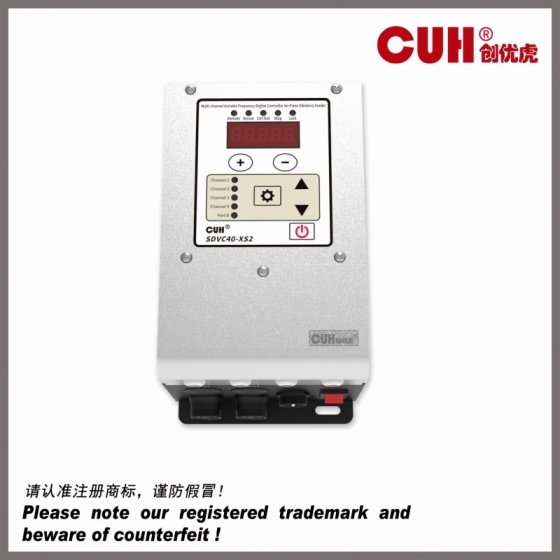

Front View
