Features：
1.Capacitive load: The controller is adaptive to resistive load, inductive load and especially capacitive load like piezoelectric ceramics.
2.Automatic Voltage Regulation: The builtin Digital Voltage Regulation function can eliminate feeding speed variation caused
by mains voltage fluctuation.
3.Soft Startup: In order to avoid sudden shock to the work pieces, SDVC40 Intelligent Piezo Parts Feeder Digital Controller can gently increase output voltage from 0 to the pre-set value when startup.
4.Soft Startup Time Settings: Soft Startup Time can be set exactly in digital numbers.
5.Intelligent Photoelectric Sensing: Our adaptive Intelligent Photoelectric Sensor can help to stall the controller when
workpieces are full or workpiece is empty and can help to fulfill the functions of Soft Startup Time Setting, Startup Delay,
Shutdown Delay, and Logical Relation Adjusting.
6.Remote Speed Control: Output voltage of SDVC40 Intelligent Piezo Parts Feeder Digital Controller can be controlled by an external potentiometer, a PLC, or a voltage control signal ranging form 1V to 5V.
7.Controlling Output: The Controlling Output signal outgoing from the transistor can coordinate a solenoid valve or other external
devices with the controller.
8.Keypad Locking: Press the ‘ON/OFF’ button and hold for 2 seconds to lock all buttons for fear of false operation.
9.Maximum Output Restraint: Maximum output voltage value can be preset to protect the equipment from damages caused by
misuse.
10.Halt When Workpieces Are Full: A NPN sensor can help to stall the controller when workpieces are full and help to fulfill the
functions of Soft Startup Time Setting, Startup Delay, Shutdown Delay, and Logical Relation Adjusting.
11.Default Settings Restore: This function allows the user to restore all default parameter settings and reset the controller.
12.Overheat Protection: SDVC40 Intelligent Piezo Parts Feeder Digital Controller
will halt its output to protect itself when operating temperature is too high.
13.Current Overload Protection: SDVC40 Intelligent Piezo Parts Feeder Digital Controller will halt its output to ensure equipment operation safety when operating current exceeds its rated value.
14.ShortCircuit Protection: If output of the controller is shortcircuited, the controller will halt its output until restarted.

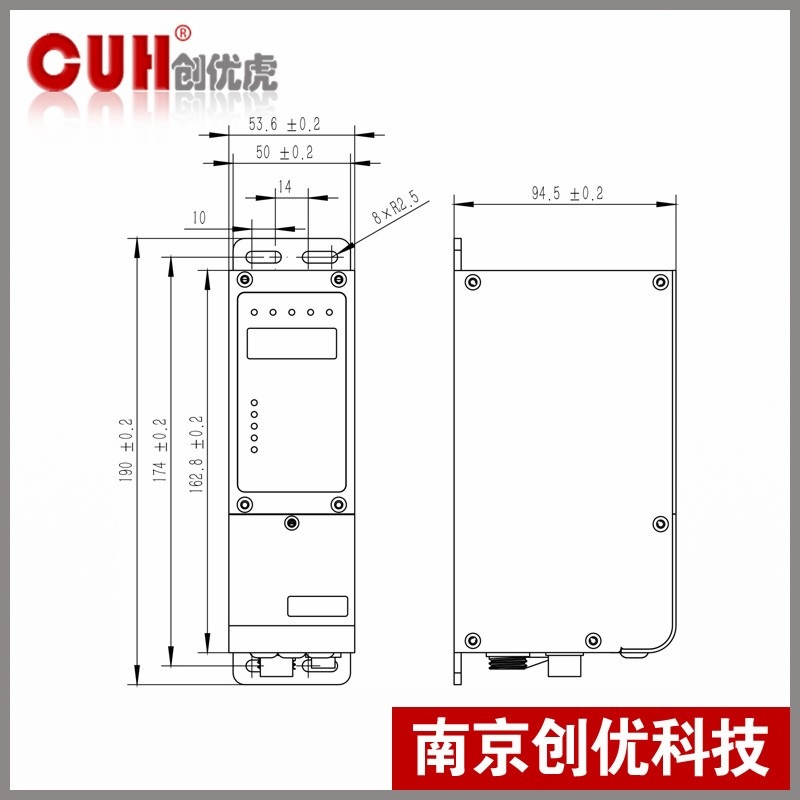

Dimensions:190*53.6*94.5(L*W*H, mm)
Weight:The controller weights 695g without accessory

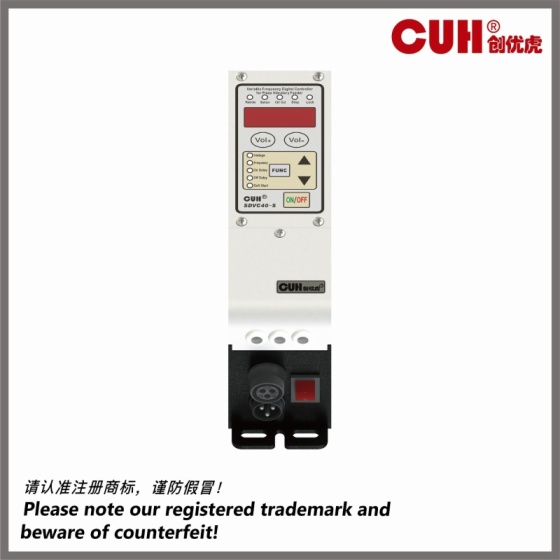

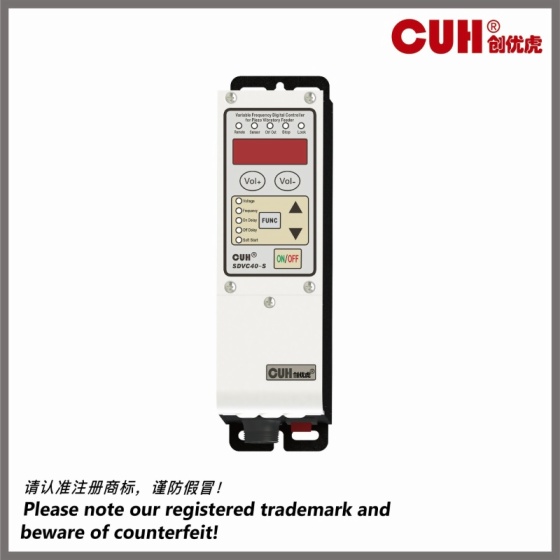

Front View
Bottom View
Signal Interface View

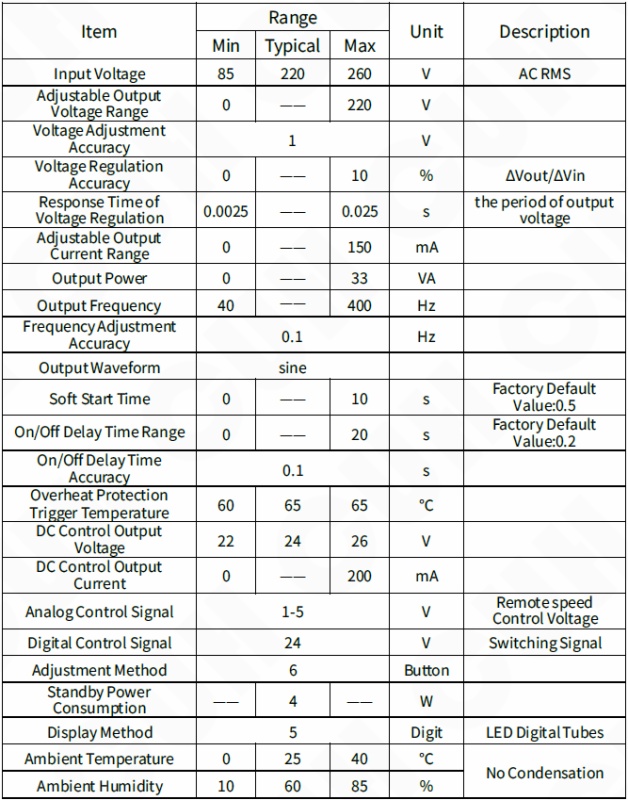

Technical Specifications：
|
Item
|
Value
|
Unit
|
Description
|
|
MIN
|
MAX
|
|
Input Power Voltage
|
85
|
260
|
V
|
AC RMS Vaule
|
|
Output Power Voltage
|
0
|
260
|
V
|
Less than 150% of Input Power Voltage
|
|
Output Current
|
0
|
0.2
|
A
|
|
|
Frequency Range
|
40
|
400
|
Hz
|
|
|
Output Power
|
0
|
44
|
VA
|
|
|
Output Waveform
|
Sine
|
|
|
|
Voltage Adjusting Accuracy
|
1
|
V
|
|
|
Frequency Adjusting Accuracy
|
0.1
|
Hz
|
|
|
Time Delay Range
|
0
|
20
|
s
|
|
|
Time Delay Accuracy
|
0.1
|
s
|
|
|
Soft Startup Time
|
0
|
10
|
s
|
|
|
Auxiliary Power Supply Voltage
|
22
|
26
|
V
|
24V DC Controlling Power Supply
|
|
Auxiliary Power Supply Current
|
0
|
200
|
mA
|
24V DC Controlling Power Supply
|
|
Standby Power Consumption
|
0
|
3
|
W
|
|
|
Display Method
|
5
|
digit
|
LED Digital Tube
|
|
Control Method
|
1-5
|
V
|
Remote Controlled Voltage
|
|
Standard TTL
Electric Level
|
|
Switching Signal
|
|
6 Buttons plus LED
|
|
Touch Button Keyboard
|
|
Ambient Temperature
|
-10
|
35
|
℃
|
Non-condensing
|
|
Working Environment Humidity
|
10
|
85
|
％
|

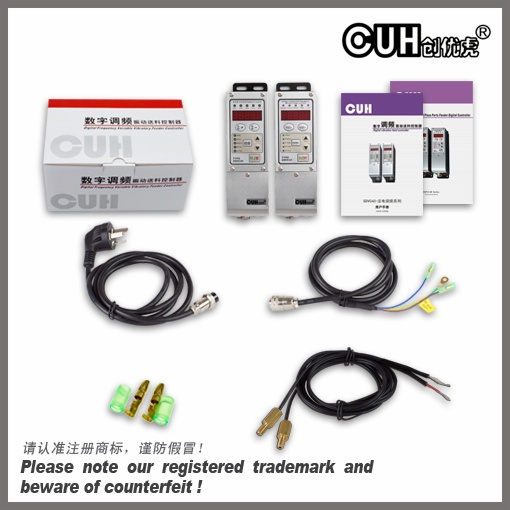

Packing Photo
