Profile information

Capacitive Load; Automatic Constant Feed Speed Control; Automatic Resonant Frequency Search; RS485 Communication; Automatic Switch Sensor Type Recognition; Digital Overheat Protection; Overcurrent Protection;  Restorable Short Circuit Protection; Counting;  Overvoltage Protection.

Product information

Capacitive Load: The controller is adaptive to resistive load inductive load and especially capacitive load such as a piezo vibrator.

Automatic Constant Feed Speed Control: Automatic output voltage adjustment in real-time to ensure constant preset feed speed regardless of weight change of the workpieces

Automatic Resonant Frequency Search: Search out and output the resonant frequency of the load. other related parameters are also set automatically.

RS485 Communication: All parameters of the controller can be adjusted via r$485.

Automatic Switch Sensor Type Recognition: The controller can recognize and adapt to PNP and NPN switch sensors.

Digital Overheat Protection: If the internal temperature of the controller gets too high, the controller will stop its output to protect Itself.

Overcurrent Protection: If the output current exceeds its rated value, the controller will stop its output to protect itself and the load.

Restorable Short Circuit Protection: If the controller's output is short-circuited, the controller will shut down its output to protect itself and the load. But the fuse inside will not be blown So when there is no short circuit at the output side, the controller will work again after powering on.

Counting: Count the number of the feed material. The controller will slow down or stop when counting up to the preset value.

Overvoltage Protection: If the input voltage is too high, the power supply of the controller will be shut down automatically to protect itself.

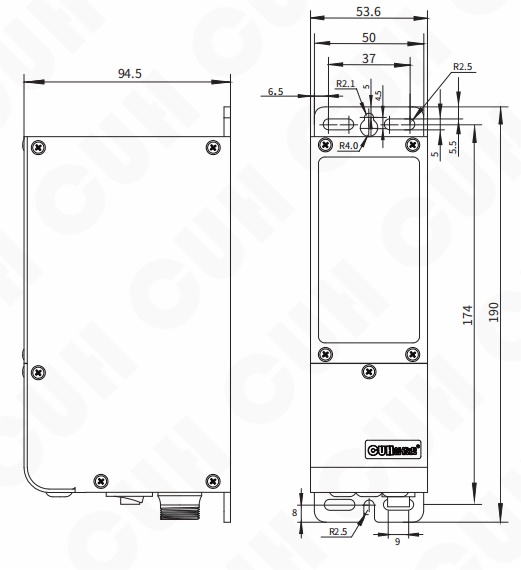

Dimensions & Weight

Dimensions: 190*53.6*94.5(L*W*H,mm)

Weight: 1043g (without accessory)

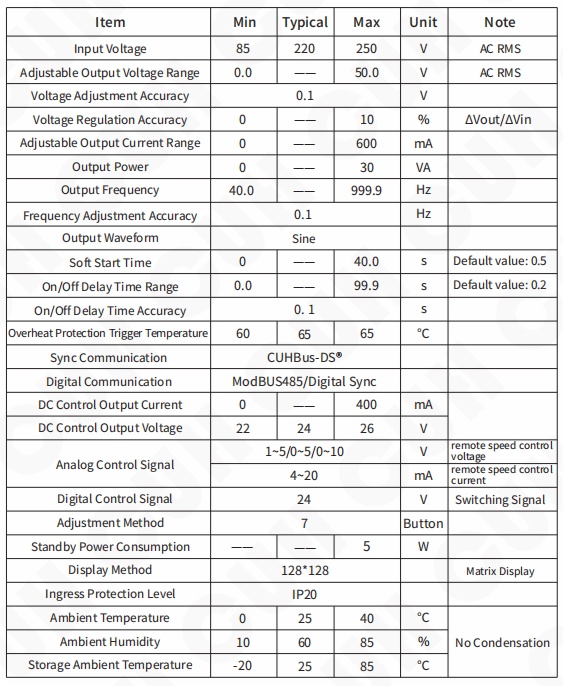

Technical Specifications

Product Specification
